RAM® Vent-Temp™ with Front Dock Connection for Round Vents
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
Swipe to see more images.
Features
- Temperature regulating accessory designed to install on the bottom of RAM® and GDS® docks with airflow pointed towards the front of a docked tablet
- Directs cold or hot air from the vehicle's A/C system towards the front of the docked tablet using a 50"-long flexible hose attachment; hose can be cut for desired length
- Both ends of the hose attachment include integrated magnetic adapters allowing for quick-disconnect from the dock and from the vent adapter

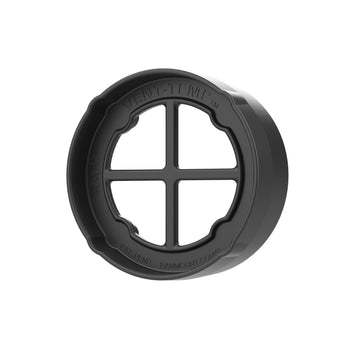

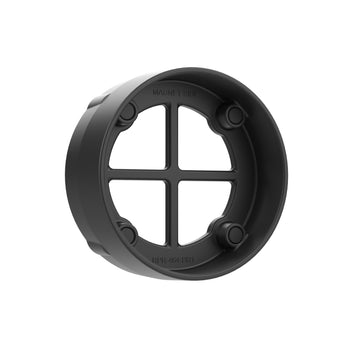

- Includes circular vent adapter covering vents with a diameter of 3.67"
- Backed by a lifetime warranty

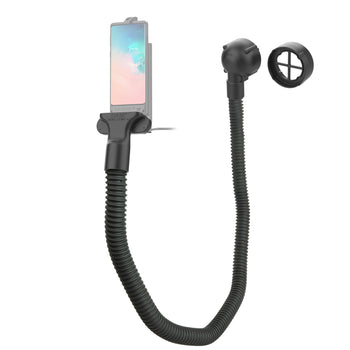

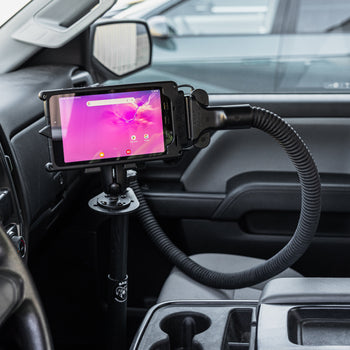

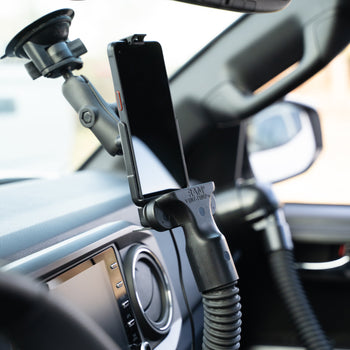

This RAM® Vent-Temp™ temperature module accessory (RAM-VENT2-RND-50U) installs to the front of any RAM® or GDS® dock and attaches to circular A/C vents 3.67" in diameter, using included zip ties. This version of the RAM® Vent-Temp™ directs air produced by your vehicle's A/C system to either cool, or heat up the front of the docked phone or tablet. This is ideal for environments where the device needs to be cooled off or heated up to maintain operating temperatures during critical work functions, or to defrost the front of the tablet to keep your touchscreen operable. When installed correctly and vent cover is attached to a circular air vent, both the hose adapter and front dock attachment feature integrated magnets for easy break-away when the RAM® Vent-Temp™ is not needed, or gets caught on something that could tug on the hose. The 50" included flexible hose can be cut to the desired length of reach from vent to dock.

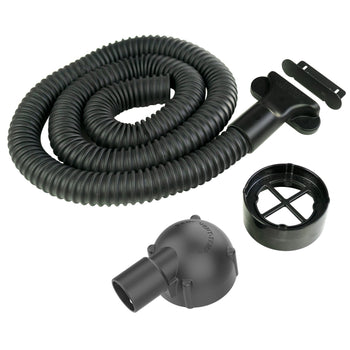

hardware included
(3) Zip Ties
(2) #4-40 x 3/4" Screws
(2) #4-40 x 7/8" Screws
(2) #4-40 x 1" Screws
(2) #4-40 x 1 1/4" Screws
hole pattern
Dock Connection: 2-Hole 1.47", 2-Hole 2", 2-Hole 2.56"
plate size
Vent Connector: 3.67" Diameter
materials
Powder coated steel
High strength composite
packaging type
Poly Bag
Weight
0.52 kg
Additional Information
This product is not compatible with GDS® Docks for Zebra Handheld PC's.
