RAM® X-Grip® 9-11" Tablet Mount with No-Drill™ Universal Base
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.
Features

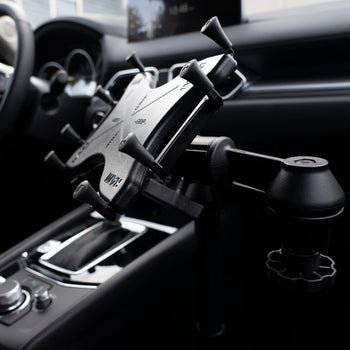

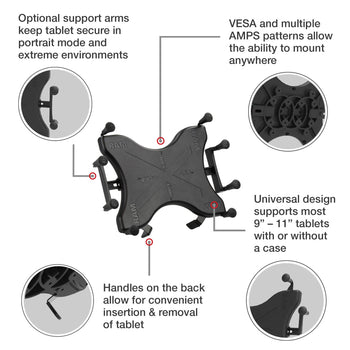

- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-11" tablets

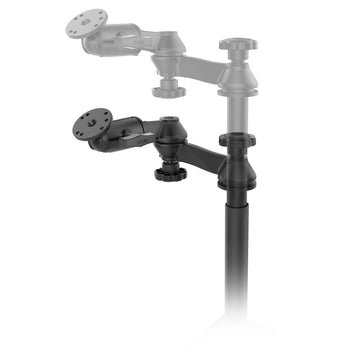

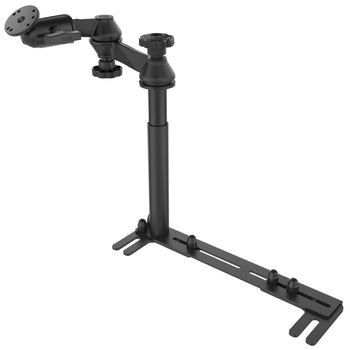

- RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

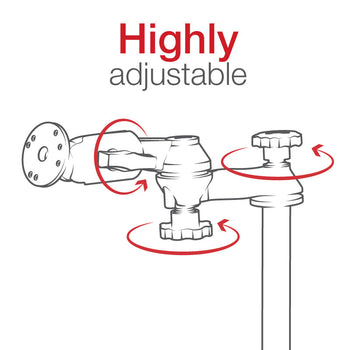

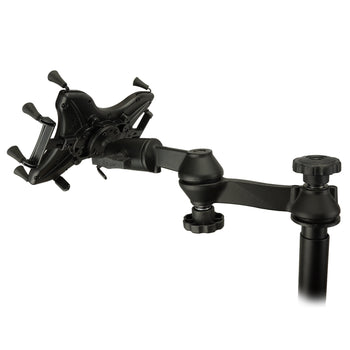

- Dual articulating swing arm allows for ideal device placement
- Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

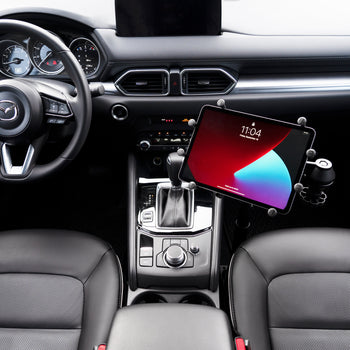

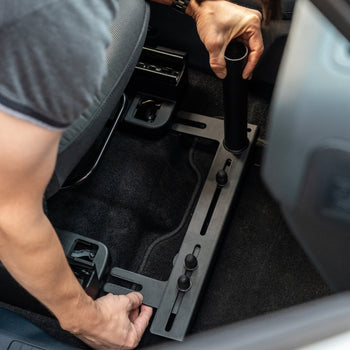

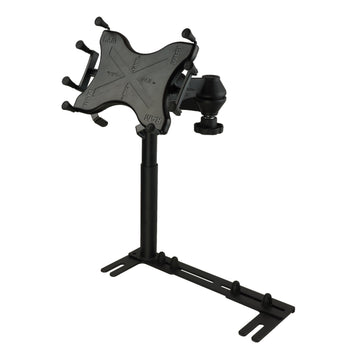

This vehicle bundle consists of the RAM® No-Drill™ mounting system and the RAM® X-Grip® universal holder for 9"-11" tablets. Designed to install quickly and easily into a range of vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Included are easy access grip knobs located on the back of the cradle for quick release of your tablet. This version of the RAM® X-Grip® holder is compatible with tablets that will fit the dimensions listed below. It is important to verify the dimensions of device with its case, sleeve, or skin when determining the overall size.
Components
hardware included
Assembly Hardware
Stabilizer Foot
holder dimensions
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 9"-18.875" centre to centre
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Powder coated steel
Marine grade-aluminium
High strength composite
packaging type
Box
Weight
5.54 kg
Additional Information
Universal Vehicle Laptop Mount Compatibility Guide
Depending on your vehicle, some installations may limit the adjustability of the passenger seat.
