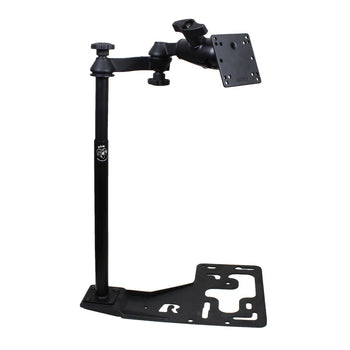

RAM® No-Drill™ Mount for Heavy Duty Trucks with VESA Plate - D Size

£407.99 (Incl. VAT)

Currently out of stock, maximum wait time will be 6 weeks.

RAM® No-Drill™ Mount for Heavy Duty Trucks with VESA Plate - D Size
Part#:RAM-VB-168-1-D-246 UPC:793442946547 Patented

Overview

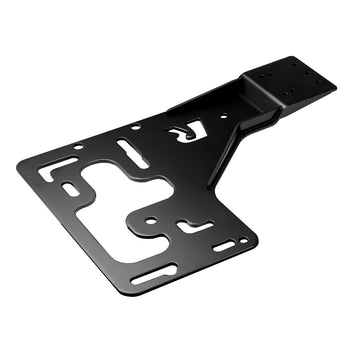

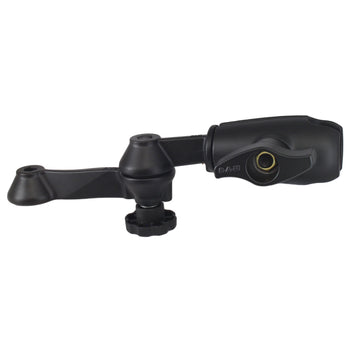

The RAM® No-Drill™ mounting base features a heavy-duty steel mounting base custom designed to fit these vehicles perfectly. Using the passenger side seat rail bolts as attachment points, existing hardware is used to secure the base in the vehicle. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. The double swing arm provides articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. This vehicle base kit comes with a D size 2.25” ball for extreme duty environments and the 75mm x 75mm and 100mm x 100mm hole pattern VESA plate.

hardware included

Assembly Hardware

hole pattern

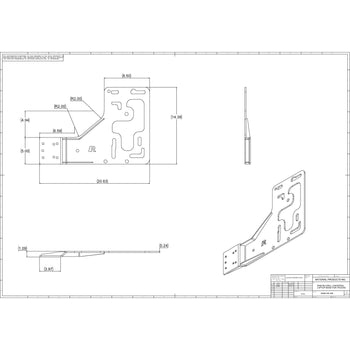

See Drawing

ball size

C Size (1.5")

materials

Powder coated steel
Marine grade-aluminium

packaging type

Box

Weight

12.06 kg

Components
