GDS® Keyboard™ with Track Pad
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.

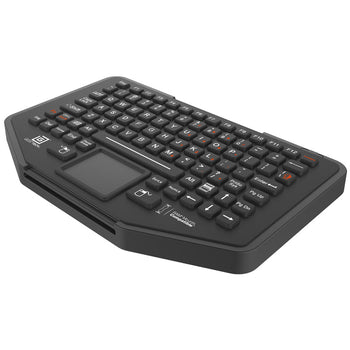

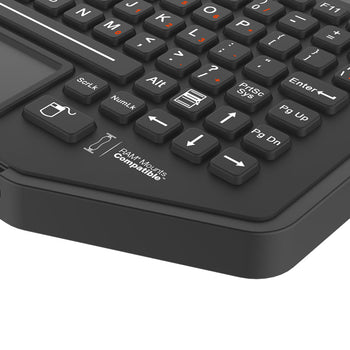

Features

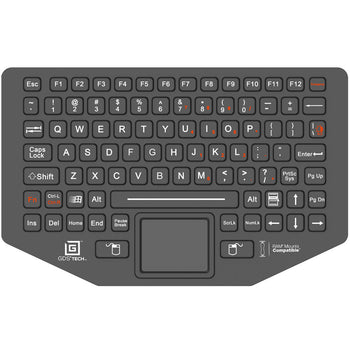

- 89 keys and 12 function keys
- Clean key to easily disable keyboard during cleaning
- Backlight keypad with red illumination to reduce eye strain
- Multi-touch two finger capable mousepad
- Communicates via USB 1.1 or 2.0

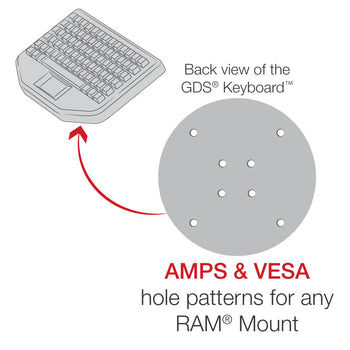

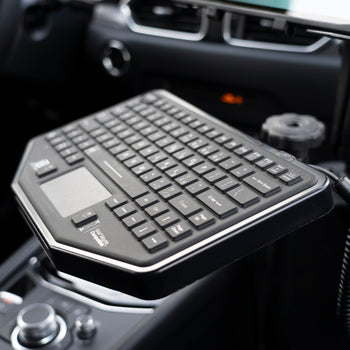

With the GDS® Tech™ rugged keyboard with USB cable and built-in mouse track pad, complete your in-vehicle mobile office setup. This keyboard features VESA and AMPS hole patterns, making it compatible with a wide variety of RAM® mounting solutions. Easily secure the keyboard with either the RAM® Tab-Tite™ dock or RAM® Tab-Lock™ dock, and then quickly remove the keyboard for use on your lap or center console.
hardware included
(4) #8-32 x 1/2" Machine Screws
product dimensions
Overall Length: 11.625"
Overall Width: 7.5"

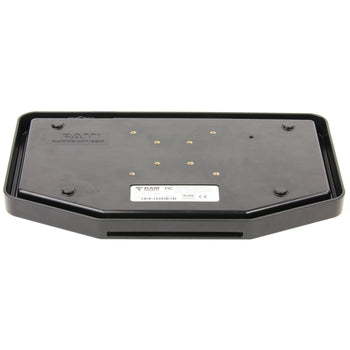

hole pattern
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Box
output cable length
33" Coiled Tension Relief USB Cable
operating temperature
-20°C to +60°C
storage temperature
-40°C to +85°C
certifications
IP65, MIL-810G 514.5, SAE-J1455, FCC, CE, and RoHS
Compatible with Mac, Microsoft Windows 7/8/Vista/XP/2000/ME/98
Warranty
1 year warranty
Weight
1.166 kg
