RAM® Powered Dock for Zebra ET6x - Heated Pins
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team .
Swipe to see more images.
Features

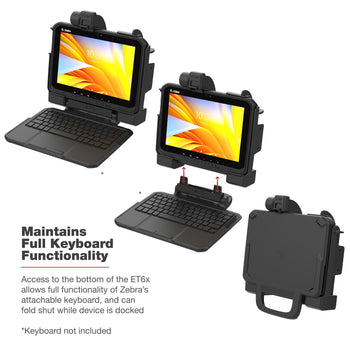

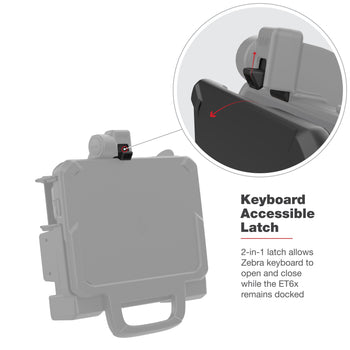

- Form-fit powered dock designed specifically for the Zebra ET60 & ET65 tablets; compatible with or without Zebra keyboard featuring unique 2-in-1 latch that secures the ET60/ET65 while allowing the keyboard to open and close freely

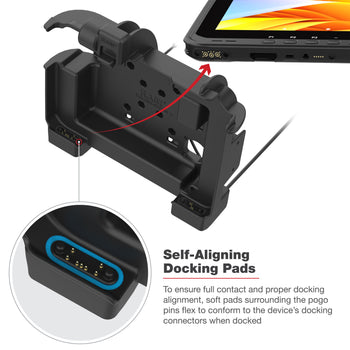

- Charging capabilities provided by 5.5mm DC barrel connector and built-in pogo pin docking contacts for a seamless charging experience; pogo pins feature self-aligning docking pads that conform to the seated device

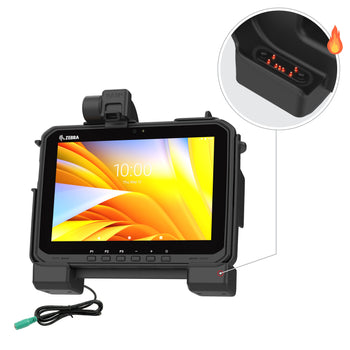

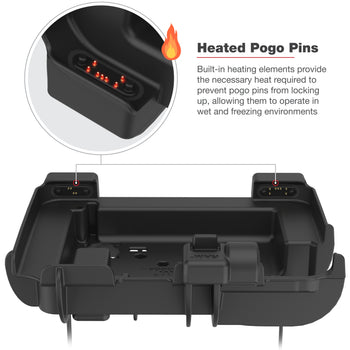

- Heating elements provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments.

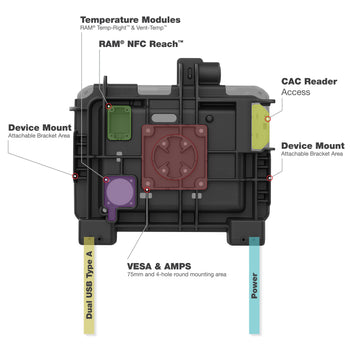

- Add-on accessory compatible including RAM® Vent-Temp™, RAM® Temp-Right™, RAM® NFC Extender, as well as two small device mounting areas on both the left and right side of the dock; dock also includes cut out on the side of the dock giving access to the Zebra CAC reader with the ability to open and close the CAC reader door
- Backed by a 3-year warranty

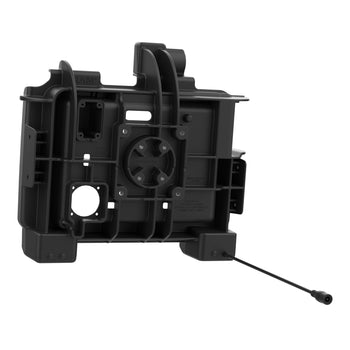

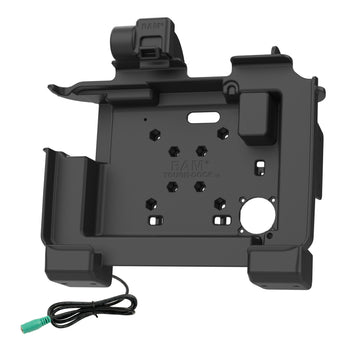

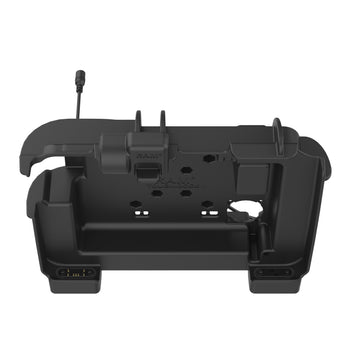

This powered RAM® Dock (RAM-HOL-ZE25PHU) features a form-fitting design specifically for the Zebra ET60 & ET65 tablets. This dock has built-in heating elements that provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. Special for this dock is a new self-aligning docking pad that surround the pogo pins and conform to the tablet when seated in the dock to provide optimal contact, and prevent damage to the pins. Made for versatility out in the field, this dock supports the device with or without the attachable Zebra keyboard and features a unique 2-in-1 latch that both secures the tablet, and allows the keyboard to open and close independently. Additionally this dock is accessory-ready, compatible with the RAM® Vent-Temp™, RAM® Temp-Right™, RAM® NFC Extender, as well as two small device mounting areas on both the left and right side of the dock. The cut out on the left side of the dock allows for easy access to the Zebra CAC reader with the ability to open and close the CAC reader door. Finish the solution by building your mount. These docks are RAM® Compatible™ equipped with 75mm VESA, or 4-hole AMPS patterns for adding a ball adapter. Take advantage of thousands of RAM® mounting components to configure the perfect ET60/ET65 solution. These thoughtfully designed features enable mobile workforces widely spread across industries in colder climates including cold storage warehousing, fixed vehicle docking in commercial transportation, and utility services in subzero environments.
hardware included
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8" Machine Screws
(2) #8-32 x 1/2" Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(8) 4" Zip Ties
(2) 7" Zip Ties
hole pattern
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input connector
5.5mm DC Connector
input cable length
1 Meter
certifications
RoHS
WEEE
CE
UKCA
Weight
0.91 kg
