RAM® Locking Form-Fit Holder for Zebra ET6x

Part#: RAM-HOL-ZE25LU
UPC:793442017285Patent Pending

£196.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks.

For a more accurate lead time please contact our sales team.

Swipe to see more images.

Features

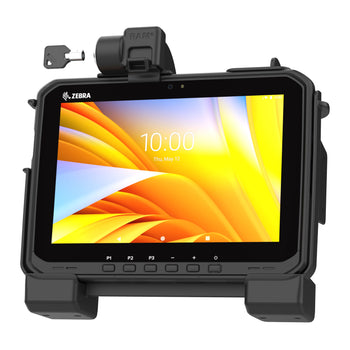

  • Key-locking form-fit dock designed specifically for the Zebra ET60 & ET65 tablets with or without Zebra keyboard

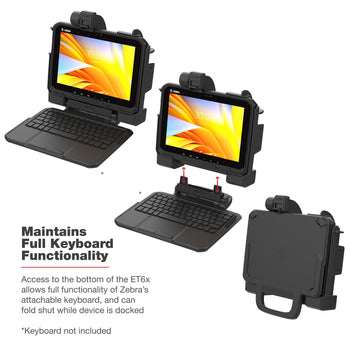

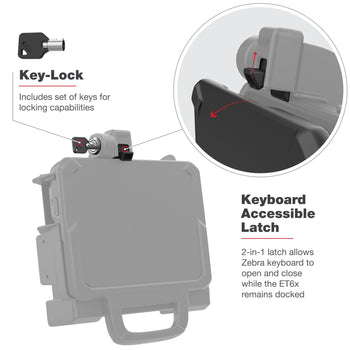

  • Unique 2-in-1 latch secures the ET60/ET65 while allowing attachable Zebra keyboard to open and close freely

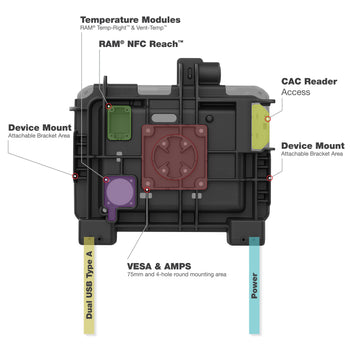

  • Add-on accessory compatible including RAM® Vent-Temp™, RAM® Temp-Right™, RAM® NFC Extender, as well as two small device mounting areas on both the left and right side of the dock
  • Cut out on the side of the dock gives access to the Zebra CAC reader with the ability to open and close the CAC reader door
  • Backed by a lifetime warranty

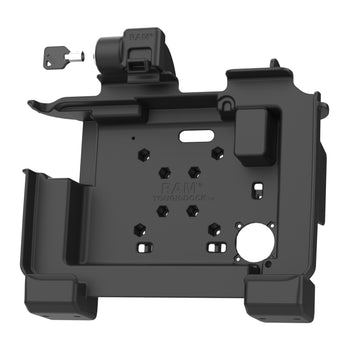

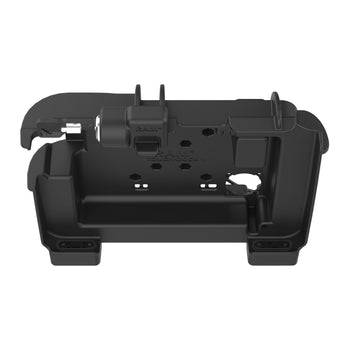

This key-locking RAM® Dock (RAM-HOL-ZE25LU) features a non-powered form-fit design, specifically for the Zebra ET60 & ET65 tablets. Made for versatility out in the field, this dock supports the device with or without the attachable Zebra keyboard and features a unique 2-in-1 latch that both secures the tablet, and allows the keyboard to open and close independently. Additionally this dock is accessory-ready, compatible with the RAM® Vent-Temp™, RAM® Temp-Right™, RAM® NFC Extender, as well as two small device mounting areas on both the left and right sides of the dock. The cut out on the left side of the dock allows for easy access to the Zebra CAC reader with the ability to open and close the CAC reader door. Finish the solution by building your mount. These docks are RAM® Compatible™ equipped with 75mm VESA, or 4-hole AMPS patterns for adding a ball adapter. Take advantage of thousands of RAM® mounting components to configure the perfect ET60/ET65 solution. These thoughtfully designed features enable mobile workforces widely spread across industries including field/utility service, public safety, construction, and more.

hardware included

(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8" Machine Screws
(2) #8-32 x 1/2" Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(8) 4" Zip Tie
(2) 7" Zip Ties

hole pattern

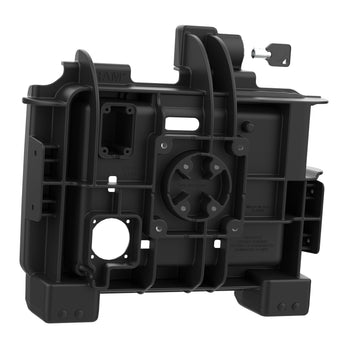

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

Weight

0.99 kg
