RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 with Boot

£87.99 (Incl. VAT)


  • Spring-loaded form-fit powered dock perfectly secures the Zebra TC22 and TC27 handheld computer with Rugged Boot; provides power through 1.25-meter long USB Type-A connector
  • Utilizies pogo pin docking contacts to provide charging capabilities to the device
  • Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty
Print Details
RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 with Boot
Part#:RAM-HOL-ZE24PU UPC:793442016677 Patented

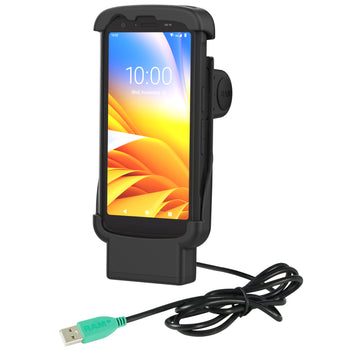

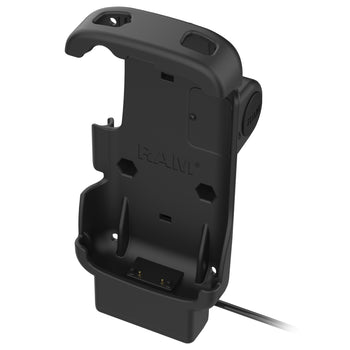

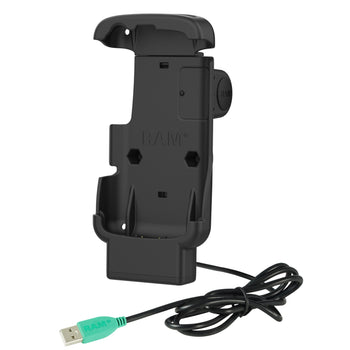

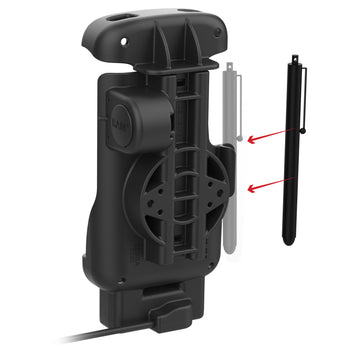

This spring-loaded, form-fit powered dock (RAM-HOL-ZE24PU) allows you to secure the Zebra TC22 and the TC27 handheld computer with the Rugged Boot installed. Power to the device is delivered via a 1.2m long USB Type-A connector and pogo pin docking pins. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).

hardware included

(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts

product dimensions

Overall Height: 7.72"
Overall Width: 3.66"
Overall Depth: 2.54"

hole pattern

2-Hole AMPS: 1.912"


High strength composite

packaging type

Poly Bag

input connector

USB Type A

input cable length

1.25 Meters




3 year warranty


0.26 kg
