RAM® Locking Form-Fit Powered Dock for Zebra TC22 & TC27 with Boot

Part#: RAM-HOL-ZE24PLU
UPC:793442016653Patented

£119.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.

.

Swipe to see more images.

Features

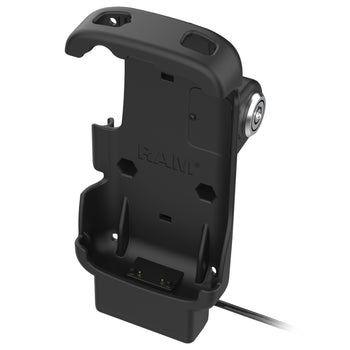

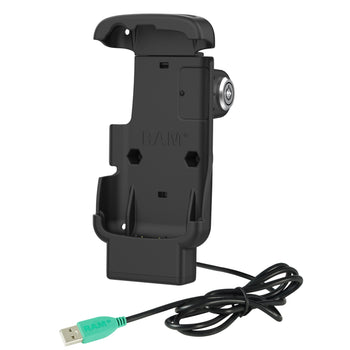

  • Spring-loaded key-locking form-fit powered dock perfectly secures the Zebra TC22 and TC27 handheld computer with Rugged Boot; provides power through 1.25-meter long USB Type-A connector
  • Utilizies pogo pin docking contacts to provide charging capabilities to the device
  • Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty

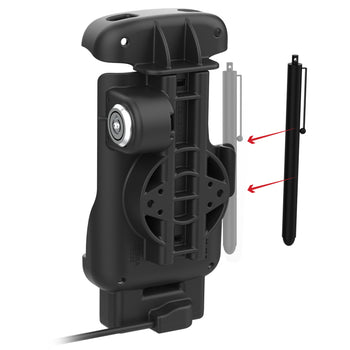

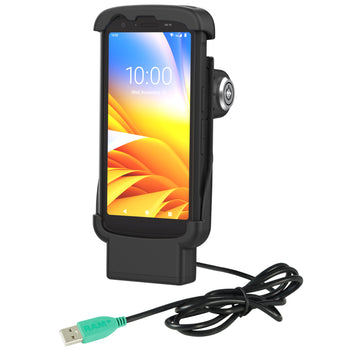

This key-locking, spring-loaded, form-fit powered dock (RAM-HOL-ZE24PLU) allows you to secure the Zebra TC22 and the TC27 handheld computer with the Rugged Boot installed. Power to the device is delivered via a 1.2m long USB Type-A connector and pogo pin docking pins. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap as well as the extended battery pack. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).

hardware included

(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts

product dimensions

Overall Height: 7.72"
Overall Width: 3.66"
Overall Depth: 2.54"

hole pattern

2-Hole AMPS: 1.912"

materials

High strength composite

packaging type

Poly Bag

input connector

USB Type A

input cable length

1.25 Meters

certifications

RoHS
WEEE
CE
UKCA

Warranty

3 year warranty

Weight

0.342 kg
