RAM® Form-Fit Holder for Zebra ET8x 2-in-1 Tablet
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
Swipe to see more images.
Features

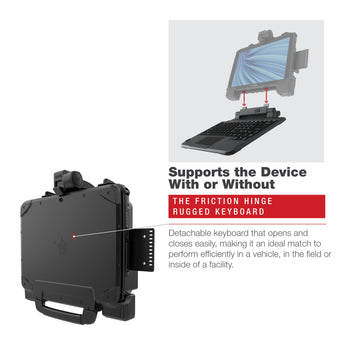

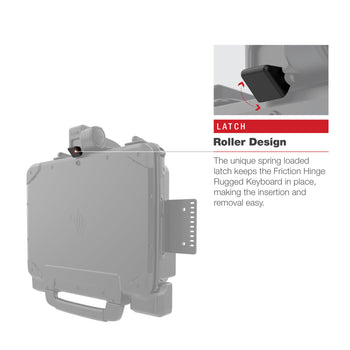

- Spring-loaded form-fit holder perfectly secures the Zebra ET8x tablets, with or without Rugged Frame and Friction Hinge Rugged Keyboard

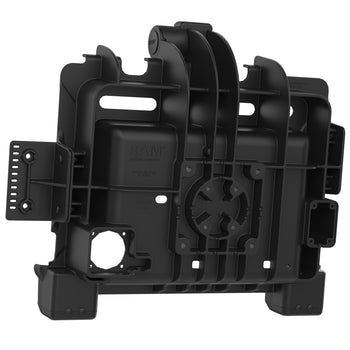

- Two separate housings on the back of the dock allow for add-on modules such as the NFC Repeater, and temperature modules RAM® Vent-Temp™ and RAM® Temp-Right™

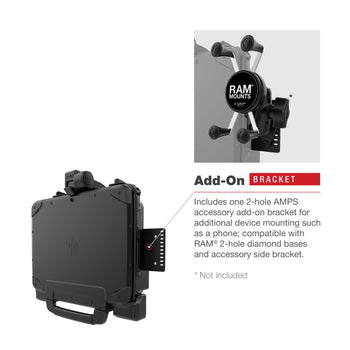

- Built-in 2-hole accessory mounting plate for additional device mounting such as a phone, scanner, or NFC Repeater
- Dock accommodates tablet add-ons such as the Zebra Expansion Back, GDS® Roto-Mag™, and GDS® Hand-Stand™ accessories
- Backed by a lifetime warranty

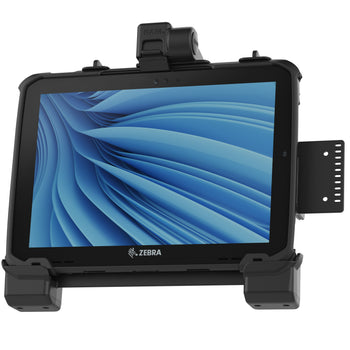

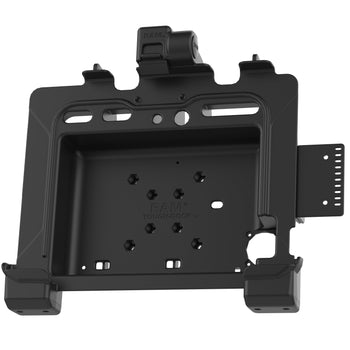

This RAM® Dock (RAM-HOL-ZE22U) features a non-powered, non-locking form-fit design specifically for the Zebra ET8x tablets. Made for versatility out in the field, this dock supports the device with or without the Rugged Frame, and accommodates the optional Friction Hinge Rugged Keyboard. Thoughtfully designed, this dock also allows space for tablet add-ons such as the Zebra Expansion Back, GDS® Roto-Mag™, and GDS® Hand-Stand™ ergonomic accessories. Embrace the weather with options to upgrade your dock with temperature modules. The RAM® Temp-Right™ can be added to regulate heat in extremely cold environments while the RAM® Vent-Temp™ utilizes the vehicle's A/C vents to direct hot or cold air to the ET8x. Take the solution a step further by upgrading to an add-on NFC Repeater module that extends the device's internal NFC reader. Pair this with the docks built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for mounting the NFC Repeater, or any other additional device such as a phone, scanner, or printer.
hardware included
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8" Machine Screws
(2) #8-32 x 1/2" Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(8) 4" Zip Ties
(2) 7" Zip Ties
product dimensions
Overall Height: 11.85"
Overall Width: 12.75"
Overall Depth: 4.36"

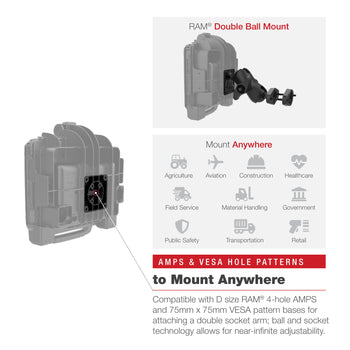

hole pattern
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
Weight
1.04 kg
