RAM® Tough-Dock™ Power + Dual USB with Latch for Zebra ET4x 10" Tablet
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
.
Swipe to see more images.
Features

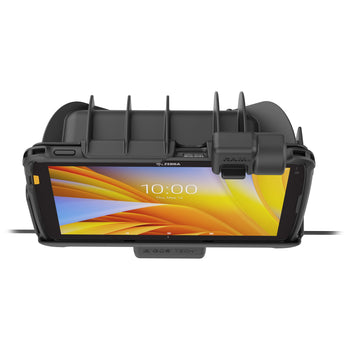

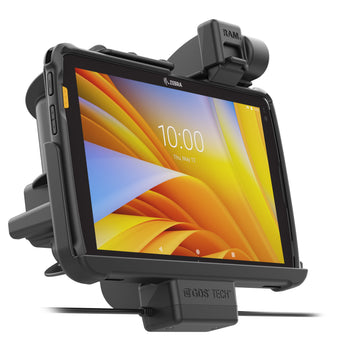

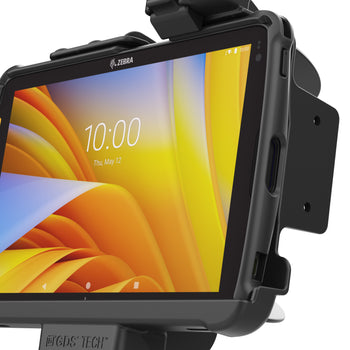

- Form-fit + dual USB Type-A dock designed specifically for the Zebra ET40 & ET45 10" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet
- When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked, and a dual USB Type A connector for adding up to 2 peripherals
- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
- Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
- Backed by a 3-year warranty

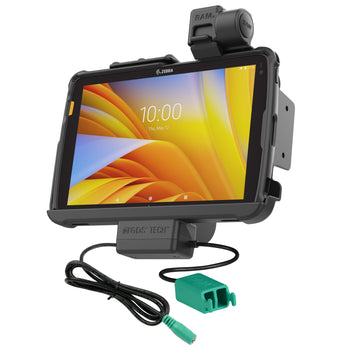

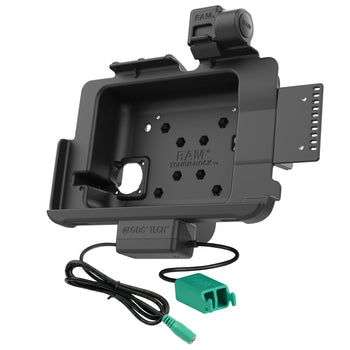

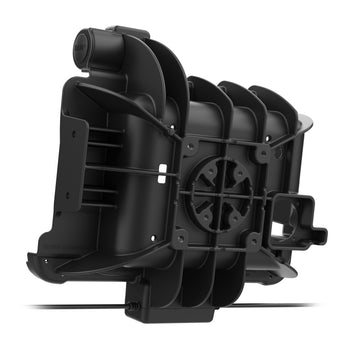

The RAM® Tough-Dock™ Power + Dual USB with Latch for Zebra ET4x 10" Tablet (RAM-HOL-ZE21PD2NLLU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A dual USB Type-A pigtail connector is provided for adding up to two additional input devices. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.
hardware included
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties
hole pattern
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input connector
5.5mm DC Connector
input cable length
1 Meter
output connector
(2) USB 2.0 Type A
output cable length
250mm
peripheral output
900mAh (per port)
transfer speed
12Mbps
certifications
RoHS
WEEE
FCC
CE
ICES
UKCA
Warranty
3 year warranty
Weight
0.754 kg
