RAM® X-Grip® Large Phone Mount with Track Ball™ Base - Long

Part#: RAM-HOL-UN10B-C-354-TRA1U
UPC:793442016882Patented

£68.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks.

For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..

Swipe to see more images.

Features

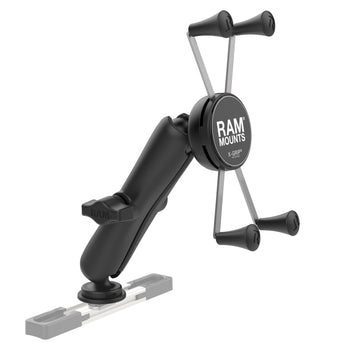

  • 1" B-size RAM® ball with adjustable T-bolt designed for track mounting systems including the RAM® Tough-Track™ and other third-party track systems
  • Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten

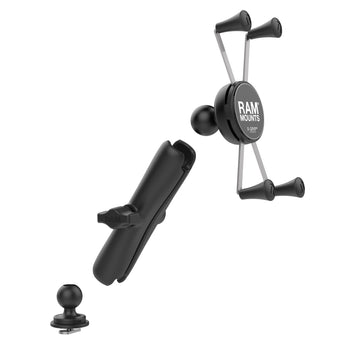

  • Includes a B-size long length socket arm and large size RAM® X-Grip® phone holder
  • Spring-loaded X-Grip® holds large size phones and includes optional device tether for peace of mind during rugged use
  • Backed by a lifetime warranty

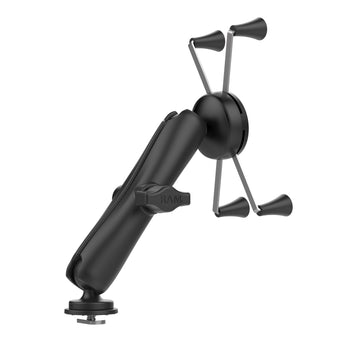

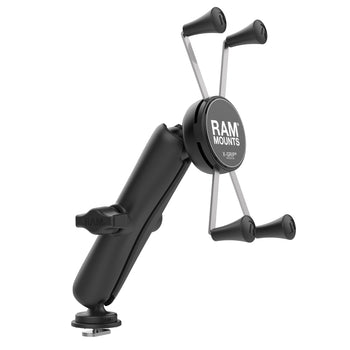

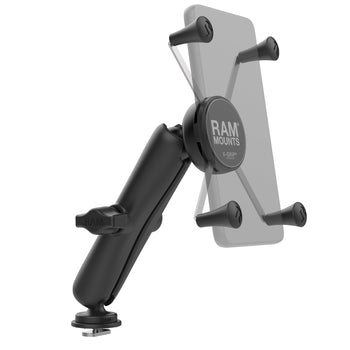

This RAM® Track Mount for large size phones (RAM-HOL-UN10B-C-354-TRA1U) is made up of a B size 1" ball molded to a high-strength composite base, a rubber friction washer and a stainless steel T-bolt for sliding into any third-party track system, or the RAM® Tough-Track™ line of tracks. Simply insert or slide the Track Ball™ into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball. Included in this kit is a B size long length socket arm and a RAM® X-Grip® for large size phones with or without a case. This track mount is ideal for mounting devices to the Jeep JL and Gladiator dashboard track mount (RAM-DT-204-TRACK-A12U) and the new Ford Bronco dashboard track mount (RAM-DT-207-TRACK-EXA-29BU).

Components

hardware included

(1) Optional Tether
(1) Glue Tube for Rubber Caps

holder dimensions

Width Range: 1.75" - 4.5"
Depth Range: .875" max

t bolt dimensions

.48" x .95"

socket to socket length

5.31"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
High strength composite
Stainless steel

packaging type

Poly Bag

Weight

0.38 kg
