RAM® Tab-Lock™ Holder for Panasonic FZ-G2 & FZ-A3
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Spring-loaded, key-locking holder secures the Panasonic FZ-G2 and FZ-A3; interchangeable end cups allow you to modify the holder when upgrading devices
- Compatible with RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

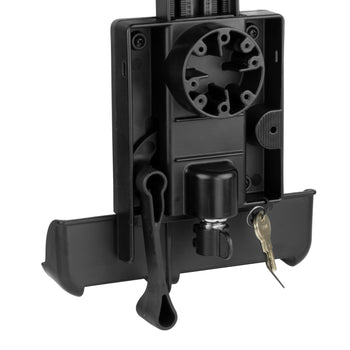

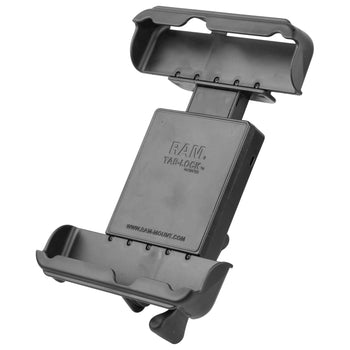

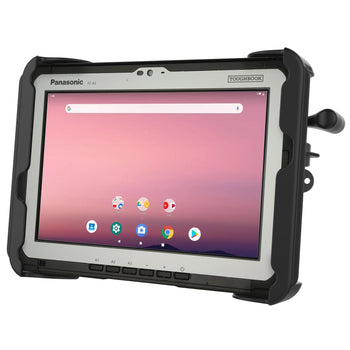

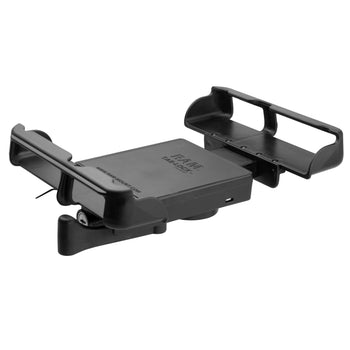

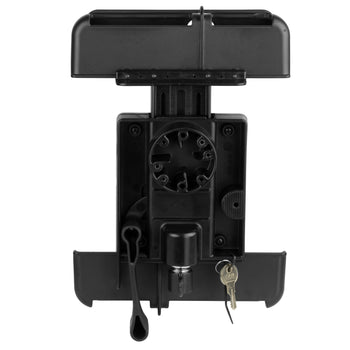

This RAM® Tab-Lock™ Holder for the Panasonic FZ-G2 & FZ-A3 consists of a spring-loaded backplate, custom support cups, and a key-locking mechanism that offers theft deterrence. The spring-loaded design makes it easy to load and unload your Panasonic device and keeps it secure while on the go. Ends cups are designed to optimize the functionality of your device, allowing access to audio jacks, USB, power, and other ports, so your device can be used just as it was intended. Quickly lock the cradle, keeping your device secure and safe from theft. Included is a set of mounting hardware to connect the cradle to any RAM® mounting components that contain the universal AMPS hole pattern. The included backplate is interchangeable with various sized support cups, making it compatible with numerous tablet models. The RAM® Tab-Lock™ is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
hardware included
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys
holder dimensions
Height Range: 10.5" - 12.5"
Width Range: 7.39" - 7.88"
Depth Range: 1" - 1.25"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
Weight
0.57 kg
