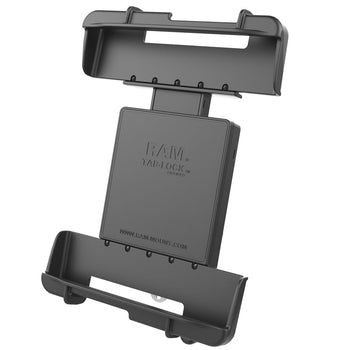

RAM® Tab-Lock™ Holder for 10”-11” Rugged Tablets
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Locking mechanism for theft deterrence
- Support cups contain open slots to accomodate for tablets of various sizes

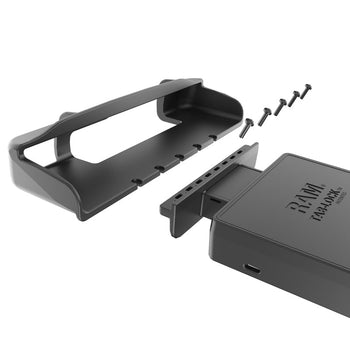

- Back plate can support various size support cups

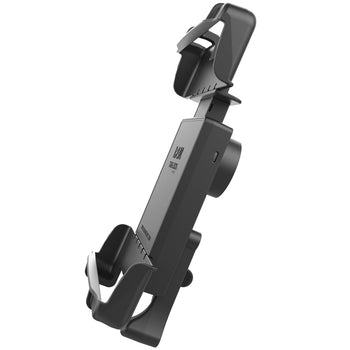

- Spring loaded tension provides secure support and quick release for your tablet
- Backed by a lifetime warranty

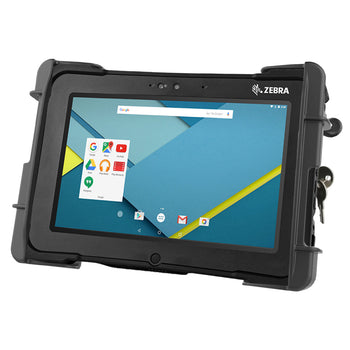

The RAM-HOL-TABL19U consists of a spring loaded back plate, custom support cups and locking mechanism. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Quickly lock the cradle, keeping your tablet secure and safe from theft. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet. If your tablet has an extended battery or handstrap integrated in the back, a set of risers may be required to offset the cups to accommodate the added thickness. The Tab-Lock™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Components
hardware included
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys
holder dimensions
Height Range: 10.75" - 13.375"
Width Range: 6.5" - 7.75"
Depth Range: .13" - .93"
hole pattern

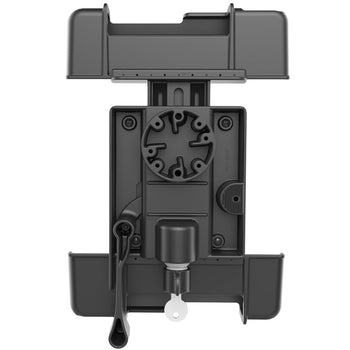

4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
Weight
0.62 kg
