RAM® Tab-Tite™ Holder for Samsung Tab S7+, S7 FE, S8+ & S9+ with Case
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Spring-loaded holder secures the Samsung Tab S7+, S7 FE, S8+ & S9+ with a case; interchangeable end cups allow you to modify the holder when upgrading devices
- Compatible with RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

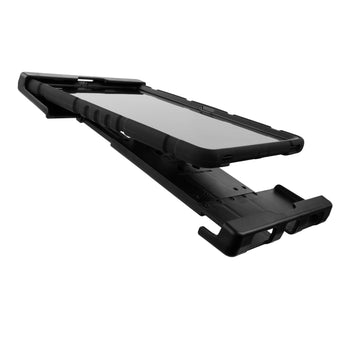

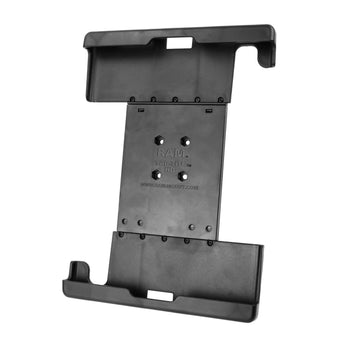

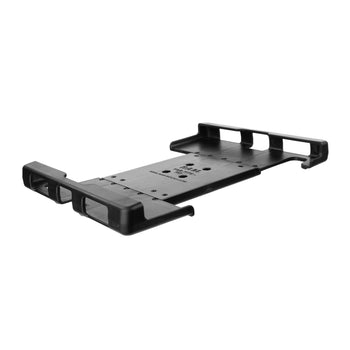

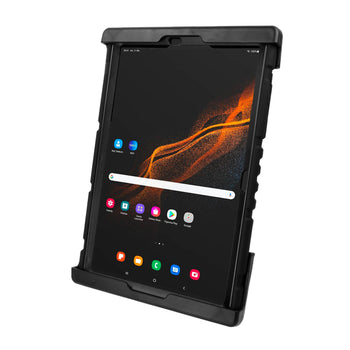

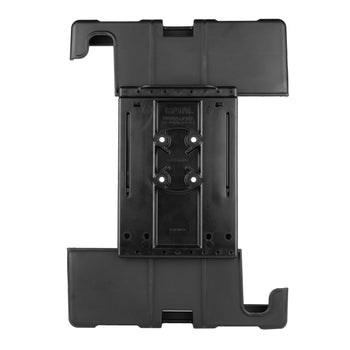

The RAM® Tab-Tite™ Holder for Samsung Tab S7+, S7 FE, S8+ & S9+ with Case (RAM-HOL-TAB36U) is a spring-loaded, quick-release device holder. The spring-loaded design makes it easy to insert and remove your tablet while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. This holder is compatible with the Samsung Tab S7+, S7 FE, S8+ & S9+ with a case.
Components
hardware included
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
holder dimensions
Height Range: 11.5" - 14"
Max Width: 8.125"
Max Depth: .79"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
Weight
0.33 kg
Additional Information
If your case has a built-in hand strap or kickstand, offset risers may be required: RAM-HOL-TAB-RISER2U.
