RAM® Tab-Tite™ Holder for 10.1" - 10.5" Tablets with or without Case
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features

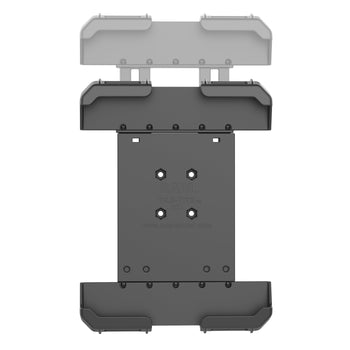

- Spring-loaded holder secures the Samsung Tab (S6 Lite, A7 10.4, S5e, and A 10.1) and Lenovo K10 Tablet with or without case; interchangeable end cups allow you to modify the holder when upgrading devices
- Compatible with RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

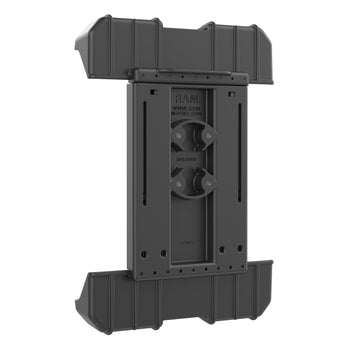

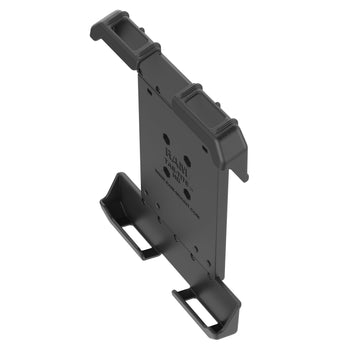

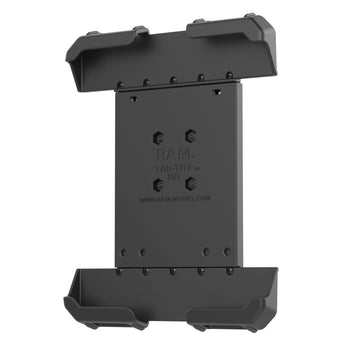

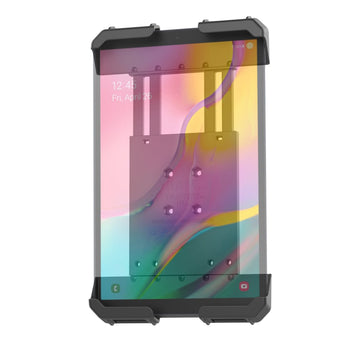

The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted 9"-10" tablet. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. The RAM® Tab-Tite™ holder is compatible with any tablet within the listed dimensions.
Components
hardware included
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
holder dimensions
Height Range: 9.55" - 11.8"
Width Range: 5.5" - 6.95"
Depth Range: .2" - .66" max
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
Weight
0.28 kg
