RAM® Tab-Tite™ End Cups for 8" Tablets with Cases
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.

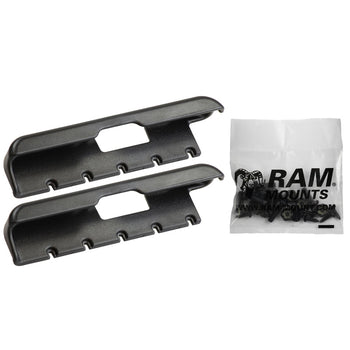

The RAM-HOL-TAB29-CUPSU includes (2 qty) RAM® Tab-Tite™ cup ends and hardware. The interchangeable support cups can be used with all RAM® Tab-Tite™ and RAM® Tab-Lock™ mounts. Hardware is included to attach the cup ends to the backplate.
hardware included
(10) #4 x 3/8" Sheet Metal Screws
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
holder dimensions
Height Range: 8.25" - 11"
Width Range: 5" - 5.88"
Depth Range: .3" - .67"
materials
High strength composite
packaging type
Poly Bag
Weight
0.09 kg
