RAM® Tab-Tite™ Tablet Holder for iPad mini 1-3
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Support cups contain open slots to accommodate for tablets of various sizes
- High strength materials maximize longevity of cradle
- Unique design enables the use of the factory iPad charging cable and docking connector
- Quickly dock and undock your iPad without requiring the insertion and removal of the charging cable
- Spring loaded tension provides secure support and quick release for your tablet

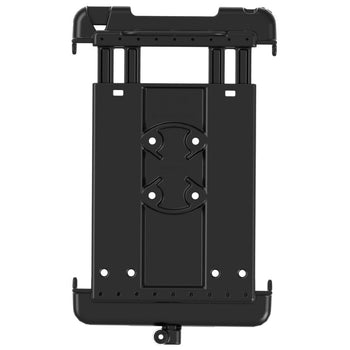

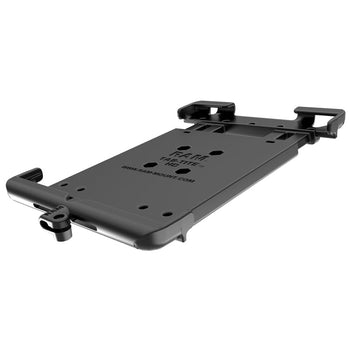

The RAM-HOL-TAB11U consists of a spring loaded back plate, custom support cups and Uni-Conn™ docking connector for the iPad mini without case, skin or sleeve. The Uni-Conn™ docking connector enables the use of the factory iPad cables with docking connector for charging as well as other functions. Also works with most aftermarket cables and or modules with docking connectors. With the vast variety of available cable/docking connector accessories for the iPad you can quickly dock your iPad for charging, line out audio, external GPS antenna and much more. This spring loaded design makes it easy to load and unload your iPad, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your iPad can be used just as it was intended. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. For off-road environments and extreme use, we recommended the use of a tether to assist in retaining your device. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Components
hardware included

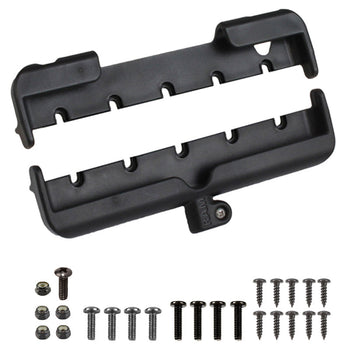

Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
(1) #4-40 x 3/8" Machine Screw
(1) #4-40 Nylock Nut
holder dimensions
Height Range: 6.8" - 10.55"
Width Range: 5.06" - 5.31"
Max Depth: .3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
Weight
0.21 kg
