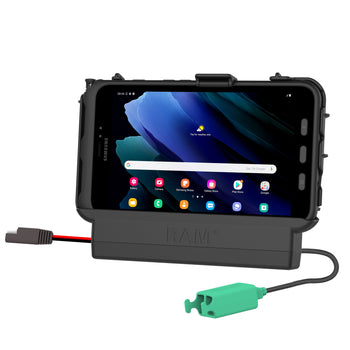

RAM® Power + Dual USB Dock for Tab Active5 & 3 with Speaker Box
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features

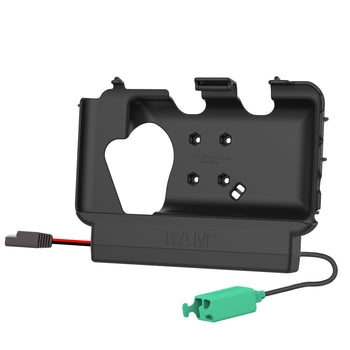

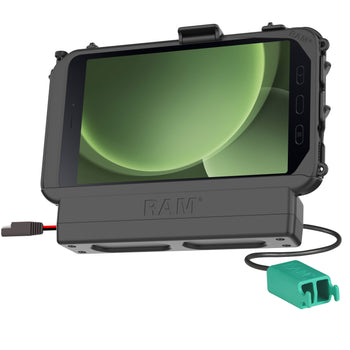

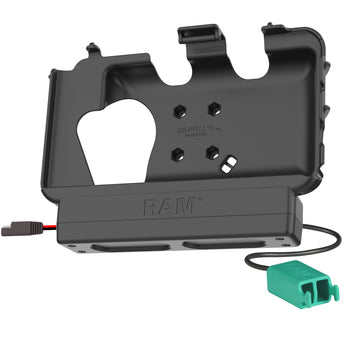

- RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active5, Tab Active3 and 2 provides charging and connects two additional USB peripherals through an integrated pogo pin connector

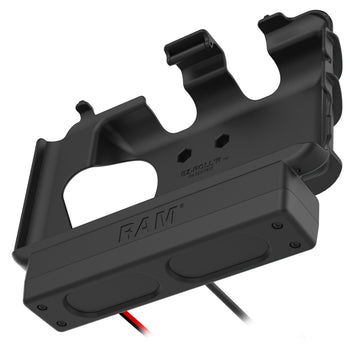

- Integrated dual speakers on the bottom of the dock for amplified audio
- Access to speakers, mics, NFC reader and headphone jack remain while device is docked

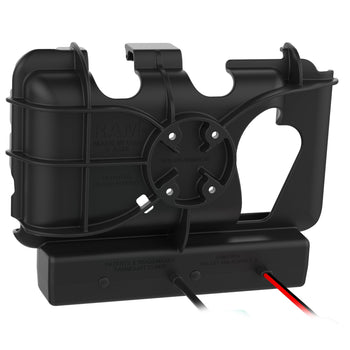

- Compatible with B and C size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty

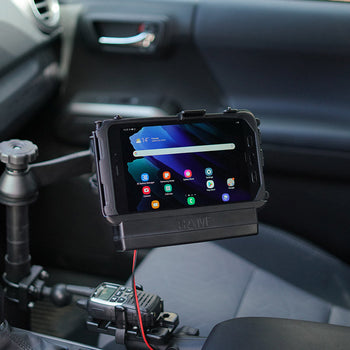

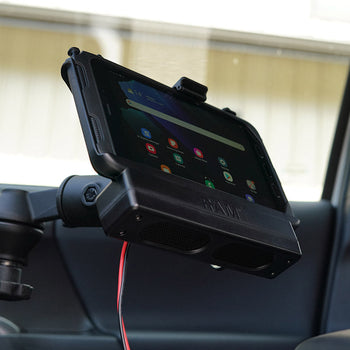

This powered dock for the Samsung Tab Active5, Tab Active3 and 2 retains all the same capabilities as the other RAM® EZ-Roll'r™ powered docks for the Tab Active5/3/2, with an added dual speaker integrated into the bottom of the dock for amplified audio while on the road. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB-A port to support up to two additional peripherals making this the ideal, compact mounting solution for your mobile workstation. Additional cavity in the back of the dock allows room for the GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.

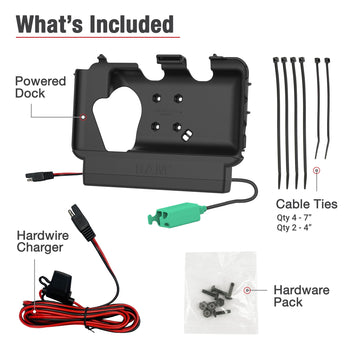

hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Large Cable Ties
(6) Small Cable Ties
speaker specifications
Max volume level: 103dB @ 100mm
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
10-28VDC
input connector
Power: Hardwire Charger with SAE Connector
Data: (2) USB Type A Female
input cable length
1.9 Meters
output connector
(2) USB 1.1 Type A
output cable length
260mm
transfer speed
12Mbps
regulatory
SAE J-1113, Integrated Short Circuit Protection
certifications
FCC, CE, RoHS, WEEE, E-Mark
Warranty
3 year warranty
Weight
0.59 kg
