RAM® USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features

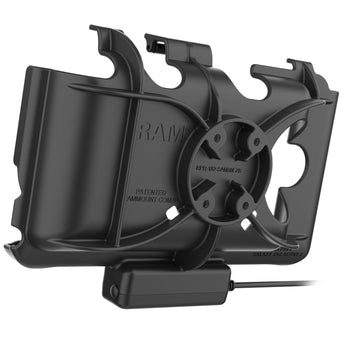

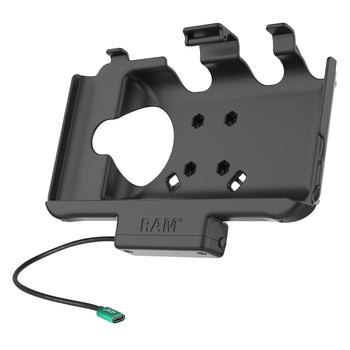

- RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Vehicle hardwire charger included
- Back by a 3-year warranty

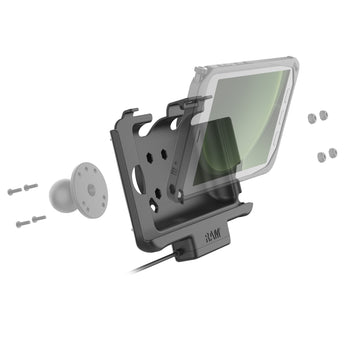

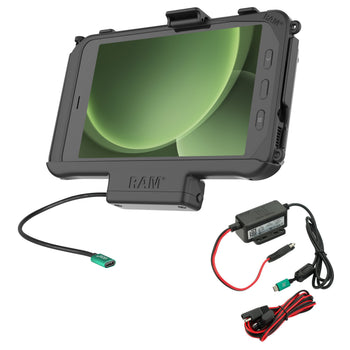

The RAM® USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger (RAM-HOL-SAM60CP-V7CU) meets the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. This cradle is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. The dock delivers power via the USB Type-C female pigtail and Modular 10-30V Hardwire Charger. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern and USB-C cable clamp with zip ties for cable management and retention.

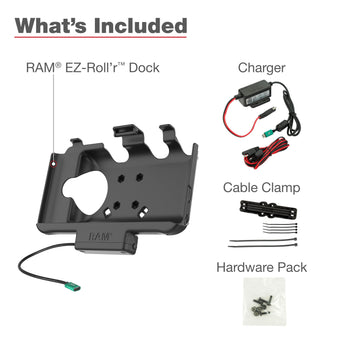

Components
hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(1) Hardwire Charger
product dimensions
Width: 9.24"
Height: 6.34"
Depth: 2.57"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
5.3-5.4VDC
output voltage
5VDC
power output
500mA
input connector
USB Type-C Female
input cable length
215mm
Warranty
3 year warranty
Weight
0.49 kg
