RAM® USB-C Powered Dock + USB-A & RJ45 Data for Samsung Tab Active5 & 3
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features

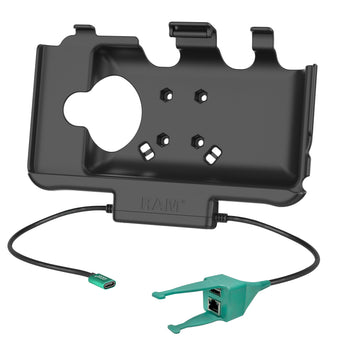

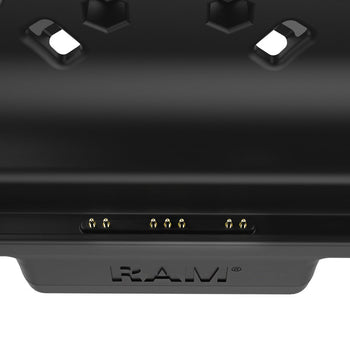

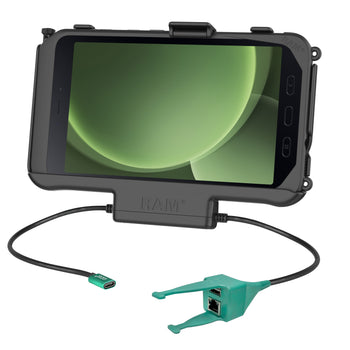

- RAM® EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Power delivered via USB-C connector; data and ethernet connects to dual USB-A and RJ45 connector
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty

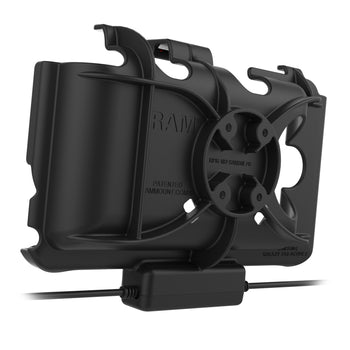

The RAM® USB-C Powered Dock + USB-C & RJ45 Data for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60CP-RJ45AU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this dock's dual USB Type-A and RJ45 (ethernet) pigtail to support up to two additional peripheral devices, making this the ideal, compact mounting solution for your mobile workstation. This modular dock is compatible with the RAM® Skin™, factory device skin, and GDS® Hand-Stand™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention.

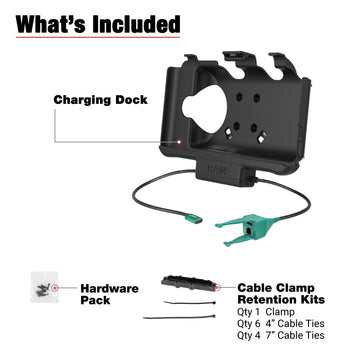

hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(4) Large Cable Ties
(6) Small Cable Ties
product dimensions
Width: 9.24"
Height: 6.34"
Depth: 2.57"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
5.3-5.4VDC
output voltage
5VDC
power output
500mA
input connector
USB Type-C Female
input cable length
215mm
output connector
(1) USB-A Female
(1) RJ45
output cable length
215mm
peripheral output
900mAh
transfer speed
480Mbps
Warranty
3 year warranty
Weight
0.361 kg
