RAM® Low-Profile Locking USB-C Powered Dock for Tab Active5 & 3

Part#: RAM-HOL-SAM58CPKLTU
UPC:793442021978Patented & Pats. Pend.

£140.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Swipe to see more images.

Features

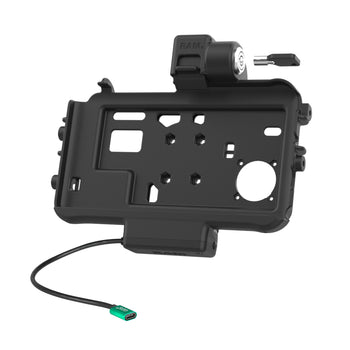

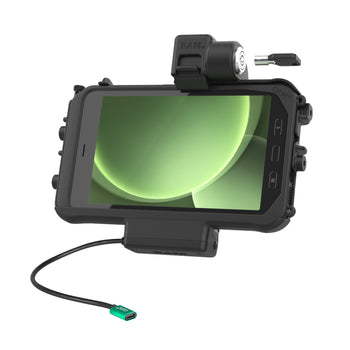

  • Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in a Samsung OEM protective case or RAM® Skin™

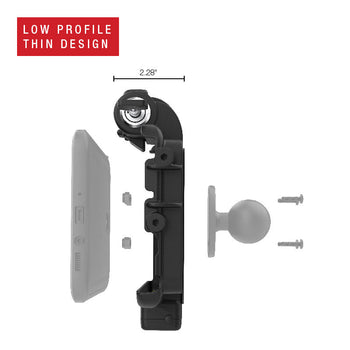

  • Slim-profile design at 2.28" depth with metal reinforcement plate

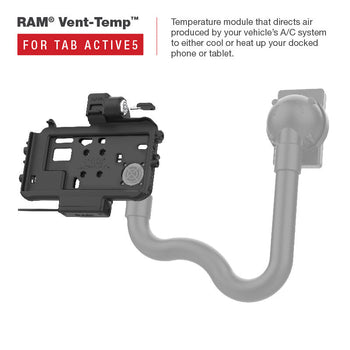

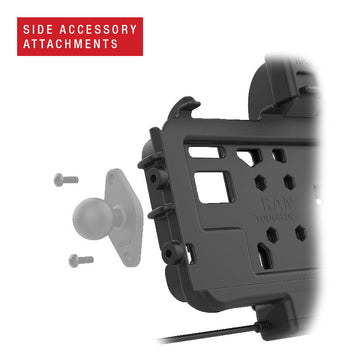

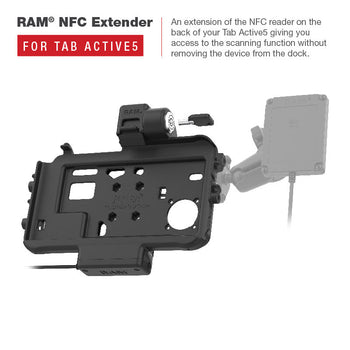

  • Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments
  • Provides charging connectivity through integrated pogo pin technology and USB-C cable
  • Backed by a 3-year warranty

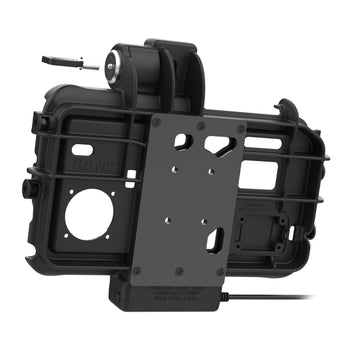

The low-profile RAM® Powered Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLTU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.

Components

hardware included

(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts

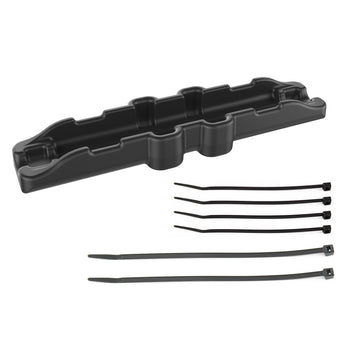

(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(6) Small Cable Ties

hole pattern

4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

input voltage

5.3-5.4VDC

output voltage

5VDC

power output

500mA

input connector

USB Type-C Female

input cable length

215mm

Warranty

3 year warranty

Weight

0.474 kg

Additional Information

This dock is not compatible with the GDS® Hand-Stand™, RAM® Temp-Right™, or GDS® Roto-Mag™.
