RAM® USB-C Low-Profile Dock + USB-A & RJ45 Data for Tab Active5 & 3
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Key-locking form-fit power + data sync dock designed specifically for the Samsung Galaxy Tab Active5 & 3 wrapped in a Samsung OEM protective case or RAM® Skin™

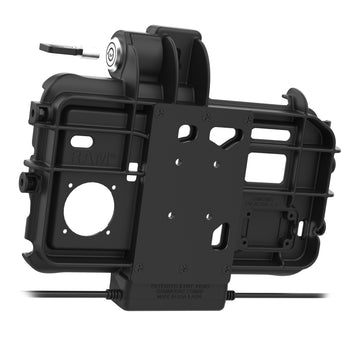

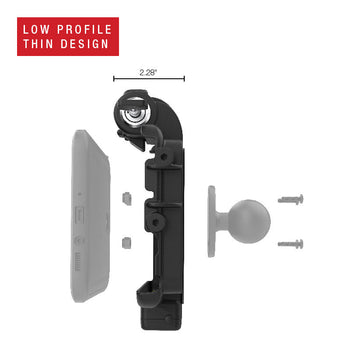

- Slim-profile design at 2.28" depth with metal reinforcement plate

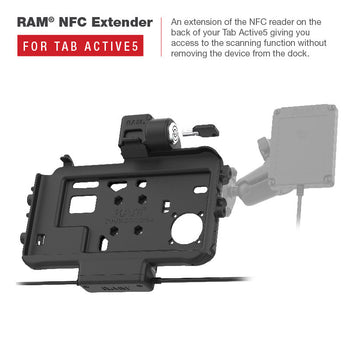

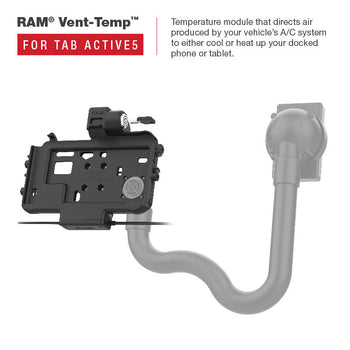

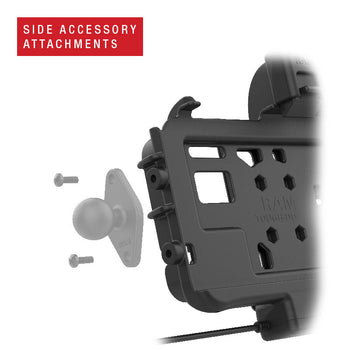

- Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments
- Power delivered via USB-C connector; connect up to one input device and ethernet via dual USB-A and RJ45 connector
- Backed by a 3-year warranty

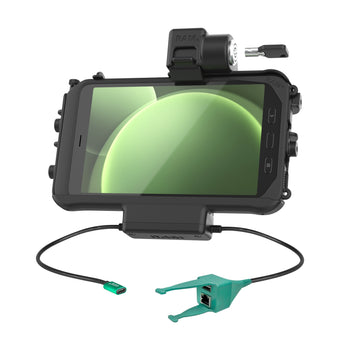

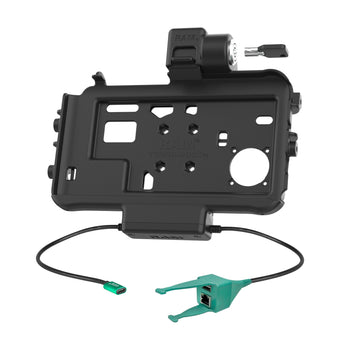

The RAM® USB-C Low-Profile Dock + USB-A & RJ45 Data for Tab Active5 & 3 (RAM-HOL-SAM58CPKLT-RJ45AU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. Add one peripheral and maintain a secure inernet connection with the built-in dual USB Type-A and RJ45 (ethernet) cord. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern and one cable clamp with zip ties for cable management.
Components
hardware included
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(6) Small Cable Ties
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
5.3-5.4VDC
output voltage
5VDC
power output
500mA
input connector
USB Type-C Female
input cable length
215mm
output connector
(1) USB-A Female
(1) RJ45
output cable length
215mm
peripheral output
900mAh
transfer speed
480Mbps
Warranty
3 year warranty
Weight
0.657 kg
