RAM® Locking Modular Power + Single USB Dock for Samsung Tab Active5 & 3
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
.
Swipe to see more images.

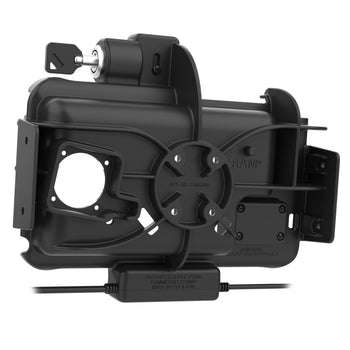

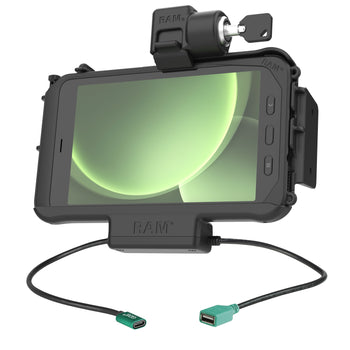

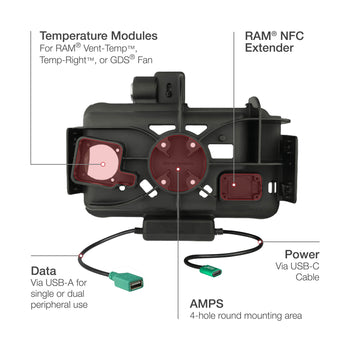

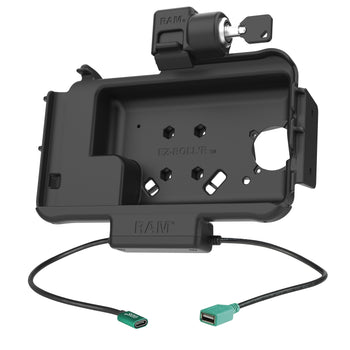

The RAM® Locking Modular Power + Single USB Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLN-1AU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB port to support one additional peripheral, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, cable clamp, and zip ties.

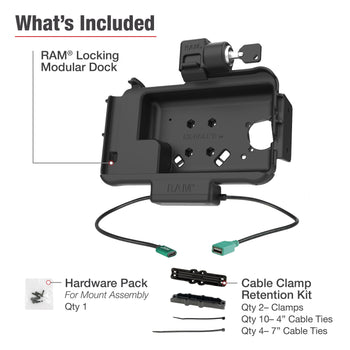

Components
hardware included
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Optional Cable Clamp Housings
(4) Large Cable Ties
(10) Small Cable Ties
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
5.3-5.4VDC
output voltage
5VDC
power output
500mA
input connector
USB Type-C Female
input cable length
250mm
output connector
USB 1.1 Type A
output cable length
250mm
peripheral output
500mAh
transfer speed
12Mbps
Warranty
3 year warranty
Weight
0.614 kg
