RAM® Locking USB-C Powered Dock for Tab Active5 & 3 with NFC Extender
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 providing power via USB-C cable

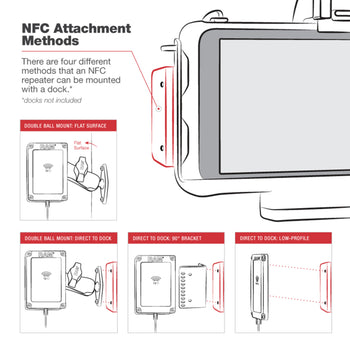

- Includes NFC repeater extending to 30cm of reach and attaches to the back of select RAM® and GDS® tablet docks
- Supports passage of data to a device from cards, tags, buttons, etc; supports Tap To Pay, asset tracking, time tracking, attendance, and much more
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Backed by a 3-year warranty

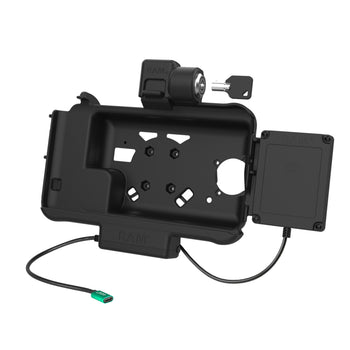

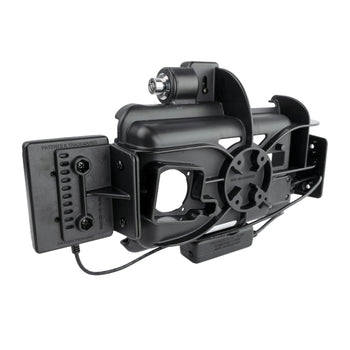

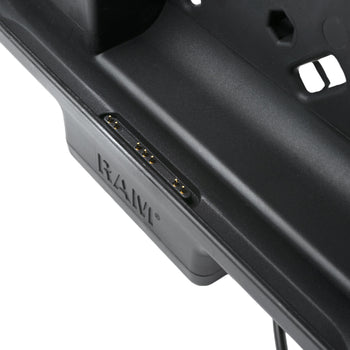

This key-locking powered vehicle dock (RAM-HOL-SAM58CPKL-NFCU) for the Samsung Tab Active5 & Tab Active3 comes with a RAM® NFC Extender. The NFC extender acts as an extension of the NFC reader on the back of the Tab Active5 & 3 giving end users easier access to the scanning function. With easier access to the NFC reader, tablet operators no longer need to remove the device from its docking station to scan — simply install the repeater on your docking station and give easy access to programs like Tap To Pay, asset tracking, time management, and more. The repeater extends to 30cm in length and installs on the back of the dock, directly behind the device's NFC reader. This charging vehicle dock has been designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power capabilities through the dock are provided to the device through pogo pin technology, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device and the pogo pins match the pattern of the pogo pads for a seamless charging experience. This dock is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.

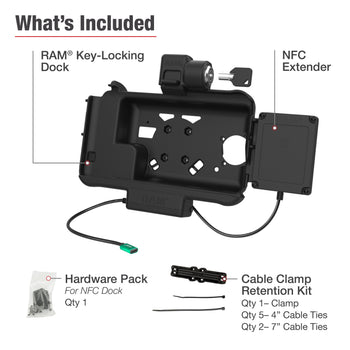

Components
hardware included
(2) Keys
(6) #8-32 x 5/8" Machine Screws
(6) #8-32 Nylock Nuts
(2) #8-32 x 1/2"
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(5) Small Cable Ties

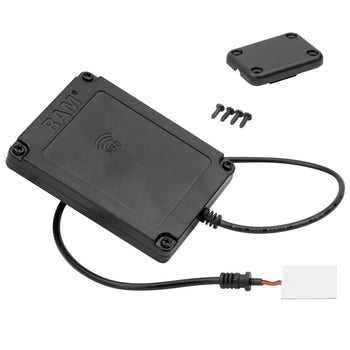

(1) NFC Repeater Extension Kit
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
5.3-5.4VDC
output voltage
5VDC
power output
500mA
input connector
USB Type-C Female
input cable length
215mm
Warranty
3 year warranty
Weight
0.652 kg
Additional Information
Potential interference of NFC functionality may occur when positioned close to strong magnets.
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
