RAM® Combo Locking USB-C Powered Dock for Samsung Tab Active5 & 3
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Powered cradle featuring combination lock for the Samsung Galaxy Tab Active5, Tab Active3 and 2

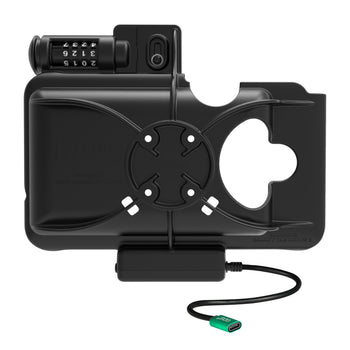

- RAM® Mounts Compatible™ with AMPS hole pattern components
- Made of high-strength composite materials for durability and reliability in the most demanding environments
- Backed by a 3-year warranty

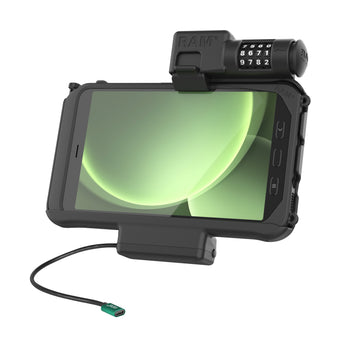

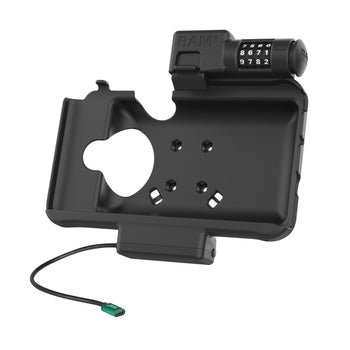

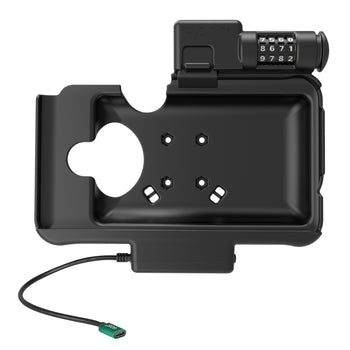

This powered combination locking cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a combination lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern.
Components
hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties
product dimensions
Width: 9.25"
Height: 7.75"
Depth: 3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
5.3-5.4VDC
output voltage
5VDC
power output
500mA
input connector
USB Type-C Female
input cable length
215mm
Warranty
3 year warranty
Weight
0.426 kg
