RAM® Power & Dual USB Data Dock for Tab Active5 Pro & 4 Pro
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Powered dock provides charging and data transfer capabilities for Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only
- Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector

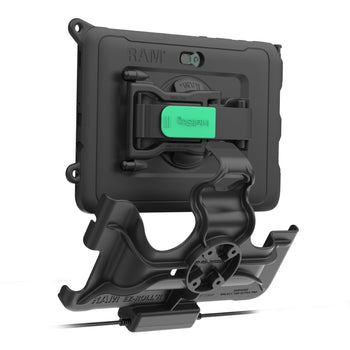

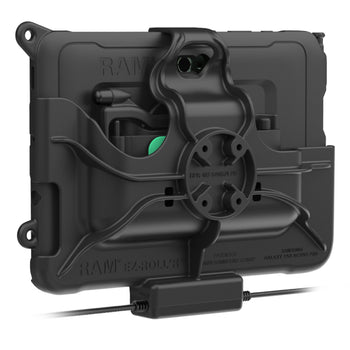

- Extra space in the back of the cradle allows for GDS® Hand-Stand™ compatibility; contains 4-hole AMPS hole pattern for RAM® ball components
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty

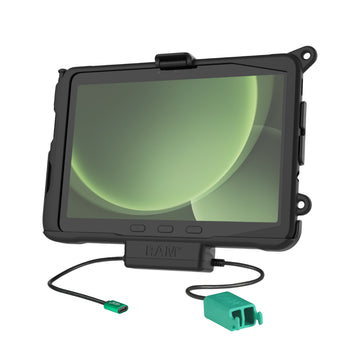

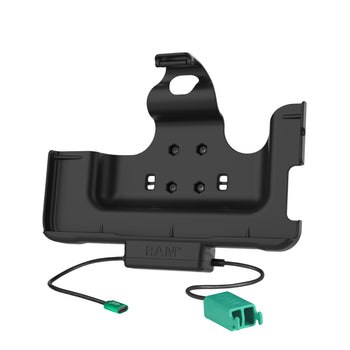

This RAM® Power & Dual USB Data Dock for Tab Active5 Pro & 4 Pro (RAM-HOL-SAM52CP-2AU) is a form-fit, powered cradle that has been designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided through GDS® pogo pins, while the cradle's dual USB-A ports support up to two peripherals, making it the ideal compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Galaxy Tab Active5 Pro, Tab Active4 Pro, or Tab Active Pro from your vehicle, to your person, to your desk with zero hassle.

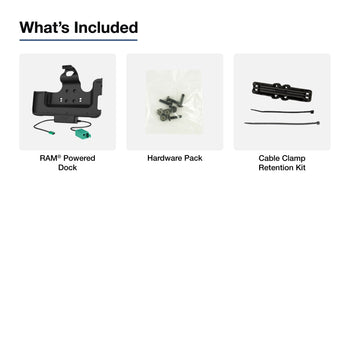

Components
hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
(1) Optional Cable Clamp Housing
(4) Large Cable Ties
(6) Small Cable Ties
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
5.3-5.4VDC
output voltage
5VDC
power output
500mA
input connector
USB Type-C Female
input cable length
220mm
output connector
(2) USB 1.1 Type A
output cable length
190mm
peripheral output
500mA
transfer speed
12Mbps
Warranty
3 year warranty
Weight
0.35 kg
Additional Information
This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.
