RAM® Quick-Grip™ XL Phone Mount with Track Ball™ Base - Long
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.
Features
- 1" B-size RAM® ball with adjustable T-bolt designed for track mounting systems including the RAM® Tough-Track™ and other third-party track systems
- Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten
- Includes a B-size long length socket arm and RAM® Quick-Grip™ XL phone holder for larger size phones
- Spring-loaded Quick-Grip® XL holds large size phones and includes adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand
- Backed by a lifetime warranty

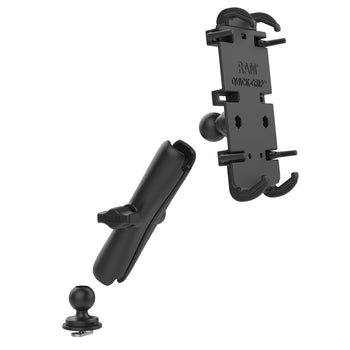

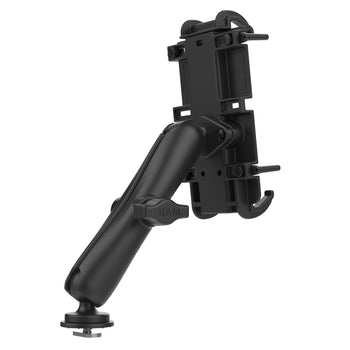

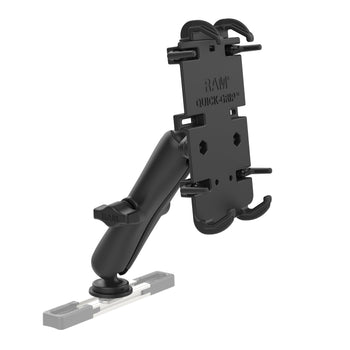

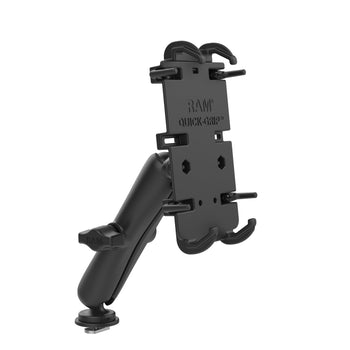

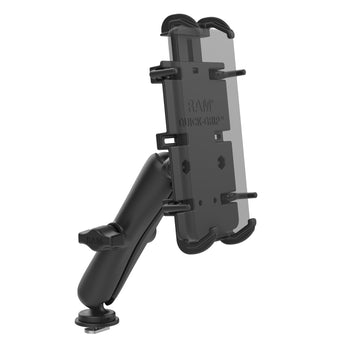

This RAM® Track Mount for large size phones (RAM-HOL-PD4-C-354-TRA1U) is made up of a B size 1" ball molded to a high-strength composite base, a rubber friction washer and a stainless steel T-bolt for sliding into any third-party track system, or the RAM® Tough-Track™ line of tracks. Simply insert or slide the Track Ball™ into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball. Included in this kit is a B size long length socket arm and a RAM® Quick-Grip™ XL for large size phones featuring adjustable side arms for a form-fitting secure hold with or without a case. This track mount is ideal for mounting phones to the Jeep JL and Gladiator dashboard track mount (RAM-DT-204-TRACK-A12U) and the new Ford Bronco dashboard track mount (RAM-DT-207-TRACK-EXA-29BU).
Components
hardware included
Assembly Hardware
holder dimensions
Height Range: 5.75" - 7.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"
t bolt dimensions
.48" x .95"
socket to socket length
5.31"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.44 kg
