RAM® Locking Powered Dock for Panasonic FZ-A3
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features

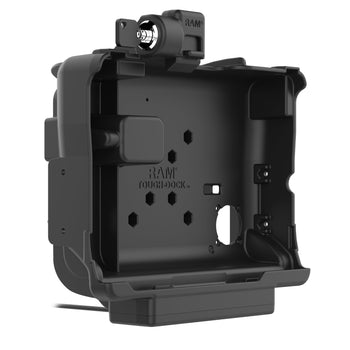

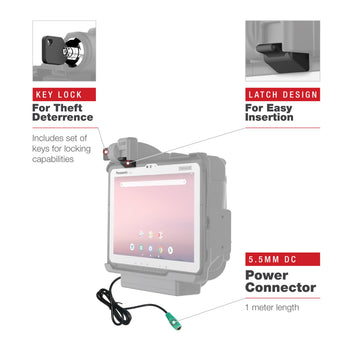

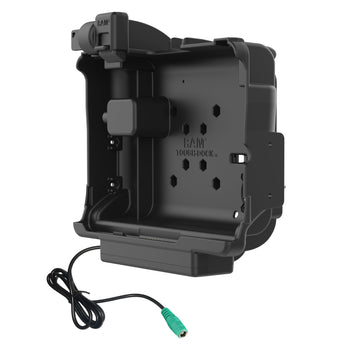

- Spring-loaded, key-locking powered dock provides charging capabilities for the Panasonic FZ-A3 tablet via DC 5.5mm power jack

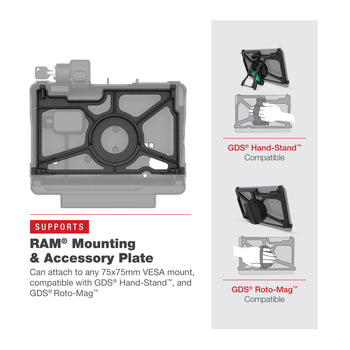

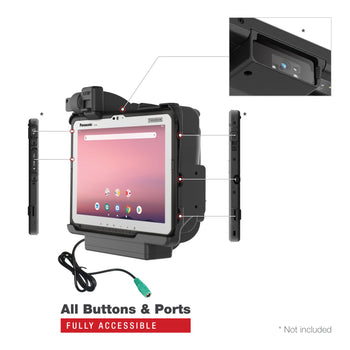

- All buttons and ports on device are exposed and fully accessible; supports Panasonic extended battery and the RAM® Mounting & Accessory Plate

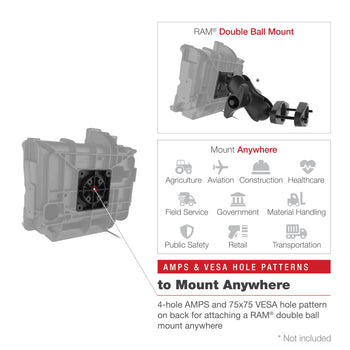

- Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty

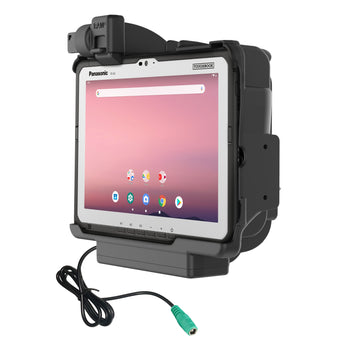

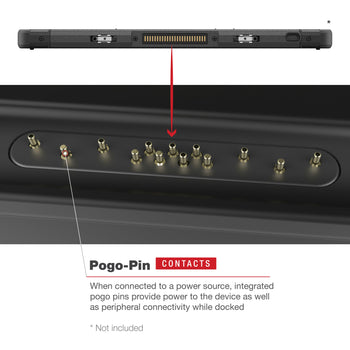

The RAM® key-locking, powered dock for the Panasonic FZ-A3 allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's 5.5mm DC power jack. This dock features cutouts that leave all buttons and ports exposed and accessible while also supporting the Panasonic extended battery, as well as RAM® Mounting & Accessory Plate. A 2-Hole AMPS Accessory bracket can easily be attached to the dock to add an additional mounting location for another device such as a phone. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.
hardware included
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
product dimensions
Overall Height: 10.5"
Overall Width: 11.19"
Overall Depth: 4.16"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
materials
High strength composite
packaging type
Poly Bag
regulatory
FCC, IC, E-Mark
certifications
CE, RoHS
Weight
1.1 kg
