RAM® Powered Combo-Locking Dock for Panasonic Toughbook FZ-N1 & FZ-F1
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features

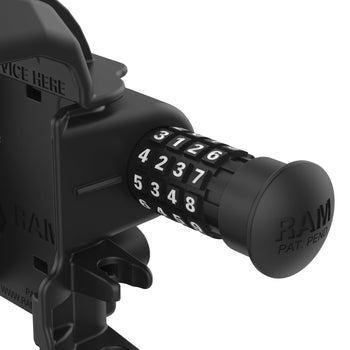

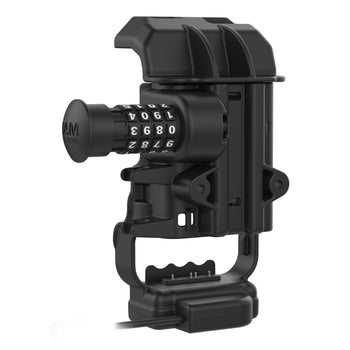

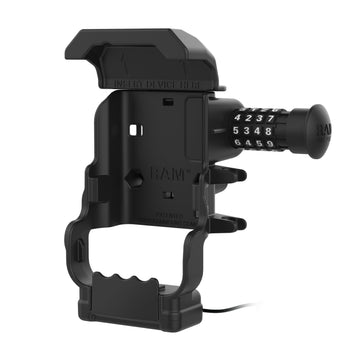

- Combination Locking form-fit cradle designed specifically for the Panasonic Toughpad FZ-N1 and FZ-F1 with one-handed docking and removal capabilities
- Compatible with Panasonic handstrap, Passive Stylus, Active Stylus and extended battery pack

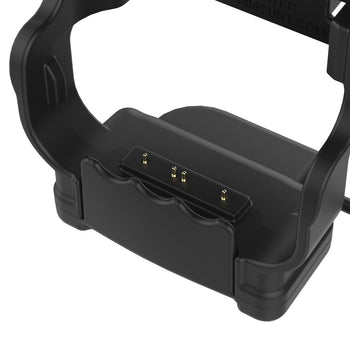

- Integrated pogo pin contacts provide charging power to the device; DC power cable for power
- Compatible with B and C size RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty

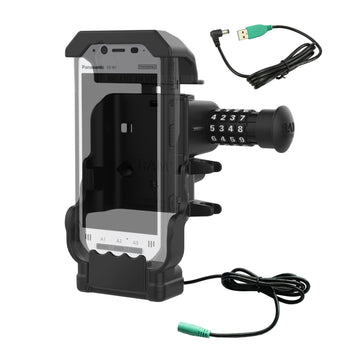

Secure and charge the Panasonic Toughbook® FZ-N1, or FZ-F1, with this RAM® powered cradle featuring combination locking and integrated stylus holder. This powered cradle works with Panasonic hand straps, regular and extended batteries, and leaves all buttons, microphones, speakers, and the headphone jack exposed. For attaching to a huge range of RAM® arms and mounting accessories, the cradle is RAM® Mounts Compatible™ with RAM® B and C size diamond ball bases. For faster charging requirements use a Panasonic factory charger.

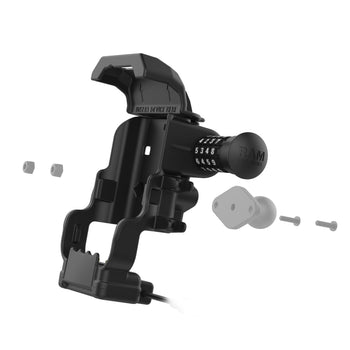

hardware included
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
Genuine USB Type A with 90-Degree DC Cable
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
input connector
DC power jack
input cable length
1 Meter
Weight
0.32 kg
