RAM® Locking Powered Dock + USB-A for Honeywell CT40/45/47 - Heated Pins
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team .
Swipe to see more images.
Features
- Spring-loaded form-fit dock perfectly secures the Honeywell CT40/45/47 Handheld Computer; provides power through 1-meter long DC connector and supports a single peripheral via USB Type-A pigtail connector

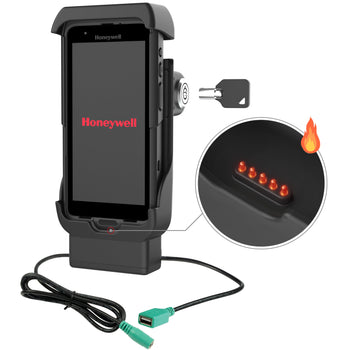

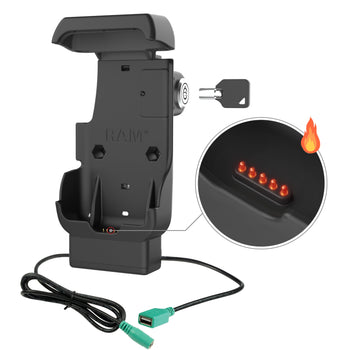

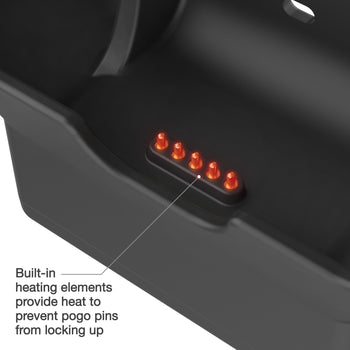

- Heated pogo pins combat ice and ensure a secure connection in harsh, cold environments

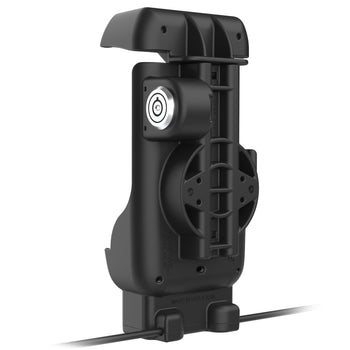

- Compatible with RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty

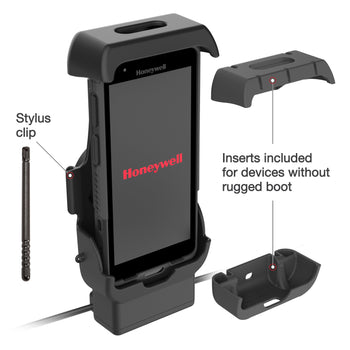

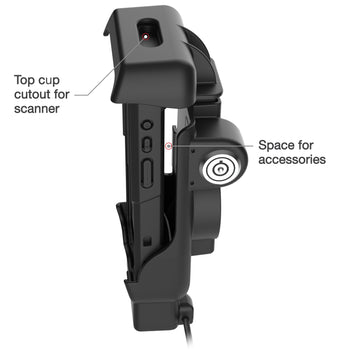

The RAM® Powered Dock + USB-A for Honeywell CT40/45/47 - Heated Pins (RAM-HOL-HON12PDHU) is a spring-loaded, form-fit powered dock that allows workers to secure and charge their Honeywell device. Power to the device is delivered via a 1m long female 5.5mm DC barrel connector and supports a single peripheral device via USB-A female connector. This dock includes an integrated stylus holder that snaps your stylus into place while not in use and is designed to accommodate OEM accessories, such as the hand strap. The top cup of the holder features a cut-out, so workers can utilize the device's scanner while docked. This holder comes with optional inserts to support devices with or without the protective rubber boot. The key lock provides theft deterrence and extra security for peace of mind. Combat harsh, freezing environments with heated pogo pins integrated into the dock to ensure a secure connection and prevent the pins from locking up due to ice. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond base and double ball mount, allowing for a wide variety of mounting options (hardware included).
hardware included
(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
product dimensions
Overall Height: 7.83"
Overall Width: 3.7"
Overall Depth: 3.17"
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
input voltage
5 VDC
input connector
5.5mm DC Connector
input cable length
1 Meter
output connector
USB 2.0 Type A Female
output cable length
1 Meter
peripheral output
500mAh
certifications
FCC, IC, CE, UKCA, RoHS, WEEE
Warranty
3 year warranty
Weight
0.439 kg
