RAM® Form-Fit Holder for Honeywell ScanPal EDA10A
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
.
Swipe to see more images.
Features
- Spring-loaded passive holder for the ScanPal™ EDA10A tablet (protective boot required)
- Compatible with OEM handstrap, RAM® NFC Extender, and RAM® Vent-Temp™
- Two built-in 2-hole mounting locations for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Made of high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

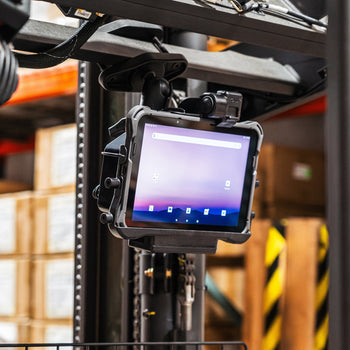

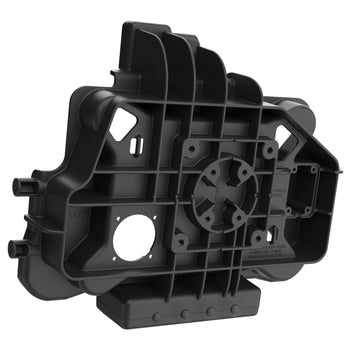

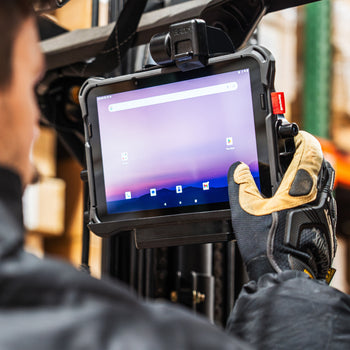

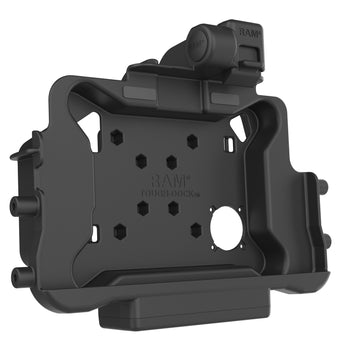

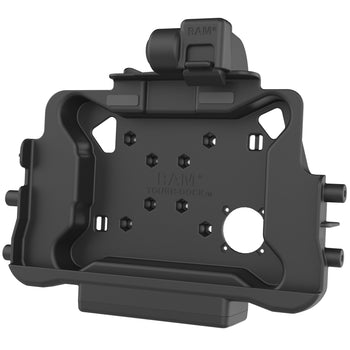

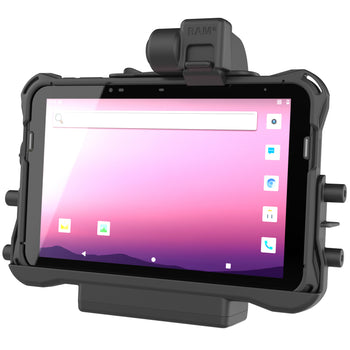

The RAM® Form-Fit Holder for Honeywell ScanPal™ EDA10A (RAM-HOL-HON11U) features a form-fit design specifically for the Honeywell ScanPal™ EDA10A tablet with the OEM protective boot. This holder features cutouts to ensure the camera, buttons, and ports are fully accessible so the device maintains its capabilities while docked, such as the scanning function and volume control. It is compatible with the OEM hand-strap accessory and requires that the protective boot is installed for a secure fit. Take your solution a step further with a variety of compatible RAM® accessories, such as the RAM® NFC Extender and RAM® Vent-Temp™. This tablet holder includes a 4-hole AMPS and 75mm x 75mm VESA pattern on the back as connection points for attaching a double socket arm to complete your mounting solution. Secure any peripheral accessories or devices directly to the dock by mounting them to one of the two built-in 2-hole mounting locations compatible with the RAM® 2-hole diamond base.
hardware included
(6) #8-32 x 5/8” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
hole pattern
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
certifications
FCC, CE, RoHS, WEEE
Warranty
3 year warranty
Weight
0.0 kg
