RAM® Locking Power + Dual USB Data Dock for Getac ZX10
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Key-locking form-fit power + dual data sync dock designed specifically for Getac ZX10 rugged tablet

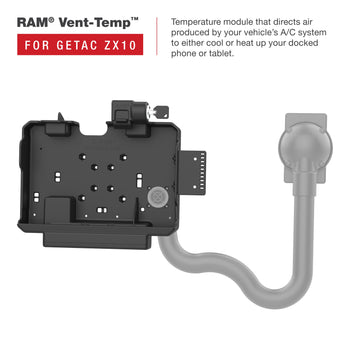

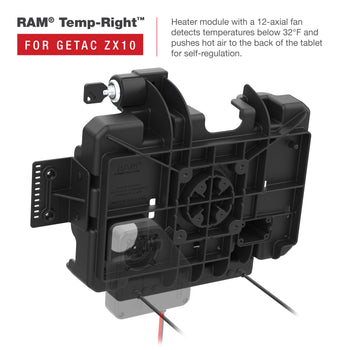

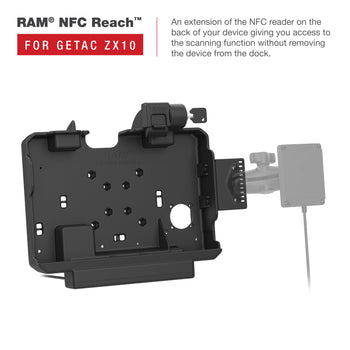

- Dock features compatibility with RAM® Vent-Temp™, Temp-Right™, RAM® NFC Extender, and D size RAM® VESA pattern base
- Provides charging connectivity through integrated pogo pin technology and 5.5mm DC connector; provides dual-peripheral support via dual USB Type-A cable
- Includes 2-hole side bracket for mounting additional devices such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty

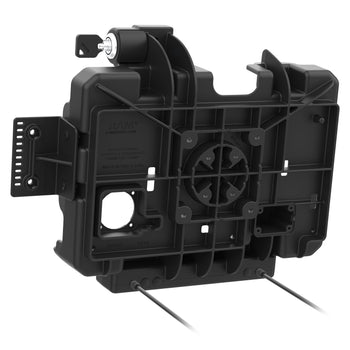

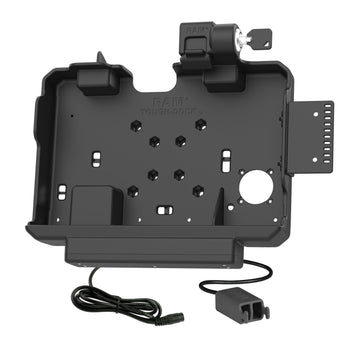

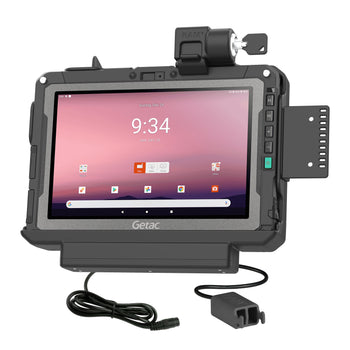

The RAM® Locking Power + Dual USB Data Dock for Getac ZX10 (RAM-HOL-GE4PD2KLU) allows you to secure the device and keep it charged through the pogo pin contacts while docked—power is provided by connecting to the dock's 5.5mm DC power jack. Add up to two peripherals with the built-in dual USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. Upgrade with any combination of compatible accessories including the RAM® Temp-Right™, Vent-Temp™, RAM® NFC Extender, and D size VESA base. Additional compatibility for Getac accessories include the Standard & High capacity batteries as well as the Hard Carry Handle. Take the solution a step further by taking advantage of the included 2-hole side bracket, compatible with RAM® 2-hole diamond bases for additional device mounting such as a phone or other handheld device. Includes a set of keys for locking capabilities.
hardware included
(2) Keys
(1) Side bracket for accessory mounting and strain relief
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-32 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(8) Small Cable Ties
hole pattern
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
output voltage
19VDC
input connector
5.5mm DC Connector
input cable length
1 Meter
output connector
(2) USB 2.0 Type A
output cable length
300mm
certifications
FCC, IC, CE, UKCA, WEEE, RoHS
Weight
1.09 kg
