RAM® Form-Fit Locking Cradle for Garmin Dezl 770LMTHD
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Open access to all electronic ports including speaker, microphone, and SD slots
- Form fitted cradle made of high strength materials ensures product longevity and protects device without vibration
- Built in visor prevents glare on screen
- Integrates the factory Garmin magnetic dock for charging
- Locks device in place so it cannot be removed without the use of tools

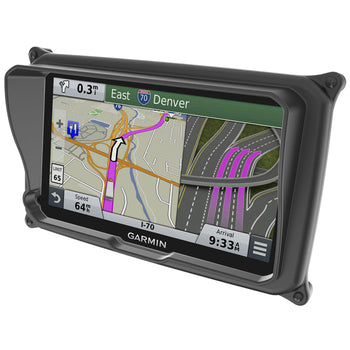

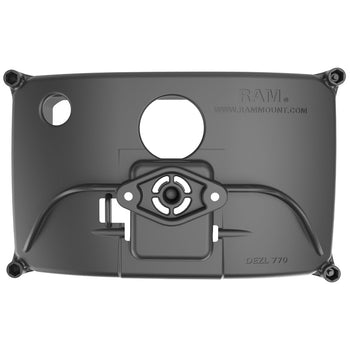

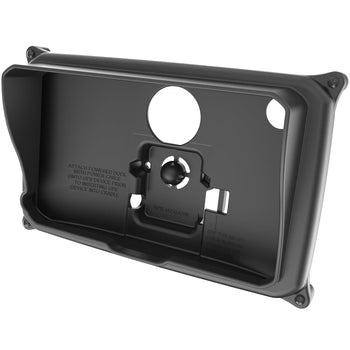

The RAM-HOL-GA70LU is a high-strength composite locking case for the Garmin dezl 770LMTHD. RAM has designed a form-fit cradle that supports the device and protects it from vibration. We have also molded in a sun visor to shield the screen and the diamond hole pattern allows the attachment to all RAM components or mounts that contain the universal AMPs hole pattern. Compatible and interchangeable with a wide range of popular RAM mounting products, this locking case is ready to compliment your GPS and become the most useful accessory in your vehicle. Included is a set of two nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
hardware included

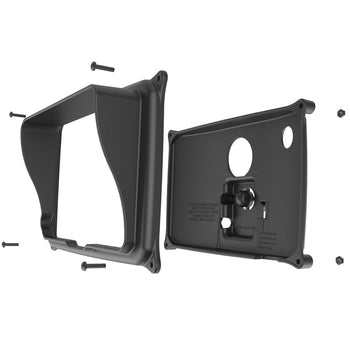

Assembly Hardware
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(1) 4" Cable Tie
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
Weight
0.25 kg
