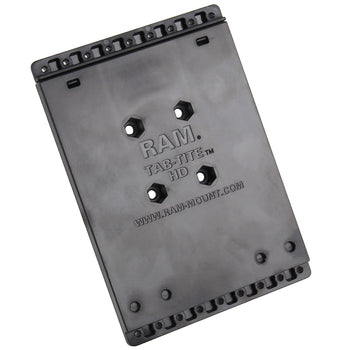

RAM® Tab-Tite™ Backplate with Fixed Mounting Screws
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Compatible with all RAM® Tab-Tite™ and GDS® end cups to support tablets for various sizes
- Low profile fixed mounting option
- Includes Phillips screws to fix your tablet in place
- Easily upgrade to new devices by switching the end cups

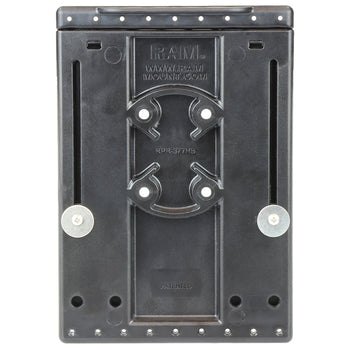

The RAM® Tab-Tite™ HD spring loaded backing plate is known for providing quick and easy insertion and removal of a tablet but sometimes you want to leave your device where it’s at. The RAM-HOL-ACNU is an alternative configuration that allows the user to fix their tablet in place. This configuration is ideal for high vibration environments or use cases where the tablet needs to remain fixed in the vehicle with a low profile mount for a low cost. During the assembly process, two nuts are inserted into the slots on the back of the Tab-Tite™ HD. The included Phillips screws are attached to the nuts and tightened, fixing the spring adjustment feature in place. The RAM® Tab-Tite™ HD is compatible with over 40 sets of end cups to accommodate a wide range of tablets, with or without a case. The Tab-Tite™ HD is compatible with GDS® end cups allowing you to charge and secure your device.
hardware included
(2) #4-40 x 3/8" Machine Screws
(2) #6 Fender Washers
(10) #4 x 3/8" Sheet Metal Screws
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
Weight
0.2 kg
