GDS® Uni-Conn™ Klein VALOR PTT Vehicle Bundle for Samsung Tab A9
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 1 to 7 week timeframe. Please contact our sales team for more accurate delivery information.
You can also order the individual component parts below.
Swipe to see more images.
Features

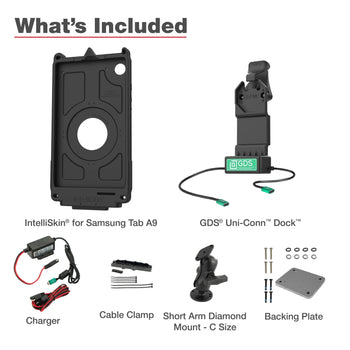

- Bundle includes the GDS® Uni-Conn™ dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab A9, C size double ball mount with short arm, backing plate adapter, and cable clamp
- Dock features GDS® Technology™ for charging and data sync capabilities; one USB-C port connects to power and one USB-C port connects one input device
- Uni-Conn™ dock features an easy device insertion and removal
- RAM® Mounts Compatible™ and compatible with the GDS® Uni-Conn™ Adapter with Hand Strap
- Backed by a 3-year warranty

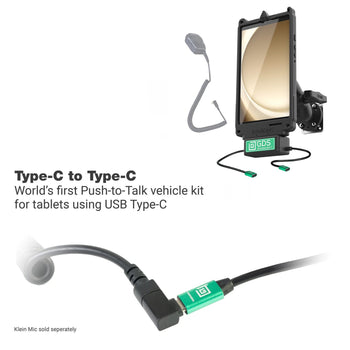

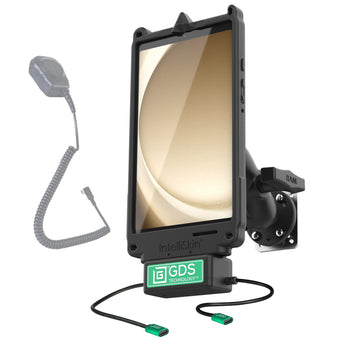

The GDS® Uni-Conn™ Klein VALOR PTT Vehicle Bundle for Samsung Tab A9 (RAM-GDS-U1-SAM95-KIT4) is the world's first vehicle dock capable of facilitating push-to-talk communications via a USB Type-C connection, made in partnership with Klein Electronics, Inc. This bundle is a comprehensive kit of everything needed to deploy the Tab A9 in your fleet. It contains one GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Tab A9, and short double ball mount with backing plate. The dock uses a USB Type-C female power connector while the USB-C pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more. The integrated pogo pins connect to the IntelliSkin®-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. Klein Electronics Valor Remote Speaker Microphone (RSM) is sold separately. This Push-to-Talk Bundle is only compatible with ESChat and Zello. The GDS® Uni-Conn™ is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™
Components
hardware included
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Vehicle Hardwire Charger
socket to socket length
2.5"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
C Size (1.5")
materials
Steel
Marine-grade aluminium
High strength composite
packaging type
Box
output voltage
5V - 12V @ 3A max
power output
15W
input connector
USB Type-C (Power In)
input cable length
215mm
output connector
USB Type-C (Peripheral)
output cable length
215mm
Weight
1.773 kg
