GDS® Tab-Conn™ for Folio Style Cases (D Shape Pogo Pads)
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 1 to 7 week timeframe. Please contact our sales team for more accurate delivery information.
.
Swipe to see more images.
Features

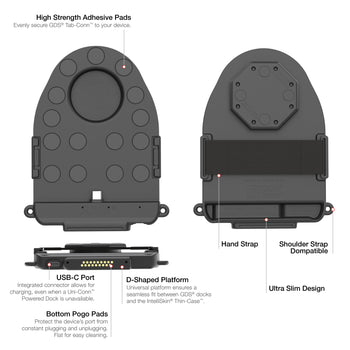

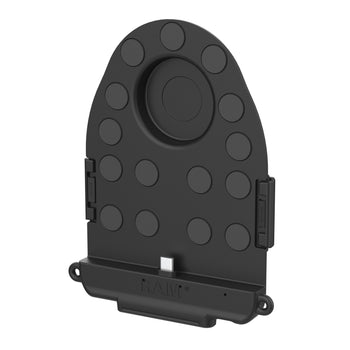

- Hard plastic, adhesive GDS® Uni-Conn™ adapter for tablets with Folio style cases— features Dinstinctive D Shape™ connector

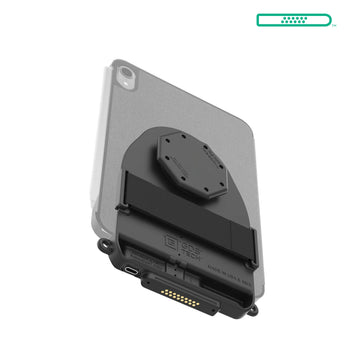

- GDS® connector with bottom pogo pad contacts provide charging and data sync capabilities; compatible with GDS® Uni-Conn™ docks
- External USB Type-C connector allows for charging capabilities when GDS® Uni-Conn™ docks are not available
- Comes with ergonomic hand strap and compatible with GDS® shoulder strap (sold separately)
- Backed by a 3-year warranty

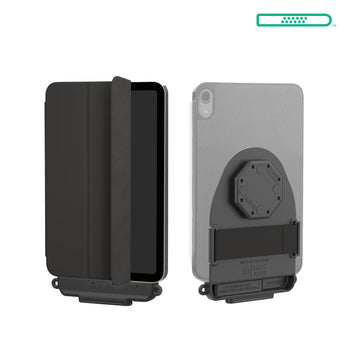

The GDS® Tab-Conn™ for Folio Style Cases (RAM-GDS-TABC-F1D) allows you to add the very best features from IntelliSkin® to your tablet enclosed in a Folio style case. By installing this adhesive adapter, you protect your device's USB-C port with the integrated pogo pin connection and unlock the GDS® Ecosystem™ of vehicle docks, desktop docks, mass charging solutions, ergonomic accessories, and more. The flat, ruggedized pogo pad contacts are made for repetitive docking to protect the device's port and collect less dirt making them easier to clean. An integrated USB Type-C connector at the bottom of the case allows for device charging even when you don’t have a GDS® Uni-Conn™ Dock available. This low-profile adapter is a cost-efficient solution that allows users to integrate GDS® Tech™ solutions into their business workflow without having to get rid of their current case and reduce the cost of an overall device refresh. One Dock to Connect Them All™. Always Protected. Always Connected.®
Components
hardware included
(1) Hand Strap
(16) Adhesive Pads
materials
High Strength Composite
packaging type
Poly Bag
transfer speed
Up to USB 3.1 @ 5Gbps (via D-Shape Contacts)*
Up to USB 2.0 @ 480Mbps (via External USB-C Port)
ports
External USB-C 2.0
Warranty
3 year warranty
Weight
0.109 kg
