GDS® View™ 13.3" Touch Screen Monitor
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Two-point capacitive 13.3" touch screen monitor with anti-glare and anti-fingerprint treatment
- MIL-STD-810G 514.5 vibration tested to ensure performance in the most demanding environments
- Includes 75 x 75mm VESA hole pattern for attachment to compatible RAM® ball plates; double ball and socket technology allows for ideal placement
- Backed by a 1-year warranty

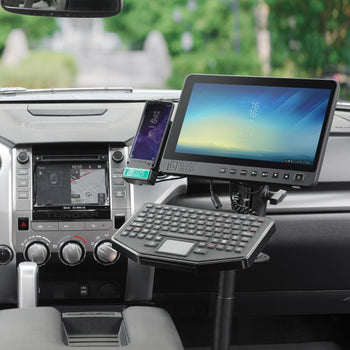

The GDS® View™ 13.3” touchscreen monitor lets you take the PC experience on the road. Featuring VESA hole patterns compatible with the RAM-2461U and RAM-D-2461U mounting plates, create a mobile workstation that takes advantage of the GDS® Ecosystem™ for data sync and charging capabilities. The GDS® View™ monitor has undergone MIL-STD-810H 514.5 vibration testing, ensuring performance in the most demanding environments. This two-point capacitive touchscreen monitor allows you to pinch, zoom, and select – and includes an anti-glare and anti-fingerprint treatment. Control buttons on the front of the monitor are easy to access, while a red monochrome night mode helps to reduce eyestrain. In addition, two integrated 2W speakers allow for audio. Includes HDMI, VGA, three USB-A Ports, one USB-B Port, and USB Type-B to USB Type-A cables. Always Protected. Always Connected.®
hardware included
(4) #10-24 x 5/8" Machine Screws
(4) #10 Stainless Steel Washers
(4) #10 Lock Washers
(1) HDMI Cable
(1) VGA Cable
(1) USB Type-B to USB Type-A Cable
Vehicle hardwire and cigarette lighter chargers
monitor specifications
Screen Size: 13.3"
Anti-glare and Anti-fingerprint treatment applied on LCD
Max Resolution: 1920 x 1080 high resolution
Aspect ratio: 16:9
Tough Panel: 2-point capacitive touch
Audio: (2) 2W Speakers
Brightness: 800nits
Contrast ratio: 1000:1
Red monochrome night mode to reduce eye strain for night viewing
Control buttons on front of monitor for easy access
Zip tie attachment loops for cable management
hole pattern
75 x 75mm VESA
packaging type
Retail Box
input voltage
10-30VDC

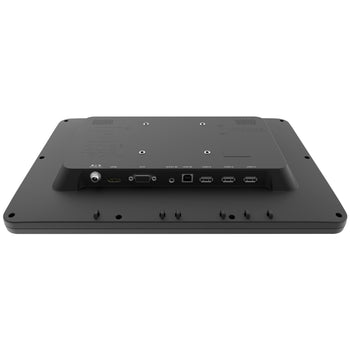

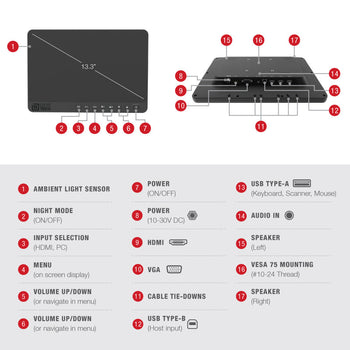

ports
(1) Power Input
(1) HDMI
(1) VGA
(1) 3.5mm Audio Output
(1) USB Type-B (Host Input)
(3) USB Type-A (Peripheral Outputs)
regulatory
Meets SAE J-1113
Integrated Short Circuit Protection (SCP)
certifications
MIL-STD-810H 514.5 Vibration Tested
FCC, CE, IC, RCM, WEEE, E-Mark, ISO 7637-2, and RoHS
Warranty
1 year warranty
Weight
2.81 kg
