GDS® Power + Dual USB Dock with Latch for Zebra ET4x 10" Tablet
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Form-fit + dual USB Type-A dock designed specifically for the Zebra ET40 & ET45 10" tablets with IntelliSkin® protective sleeve, featuring GDS® Technology™
- When connected to a power source via USB Type-C connector, integrated pogo pins provide power to the IntelliSkin-wrapped ET4x while docked

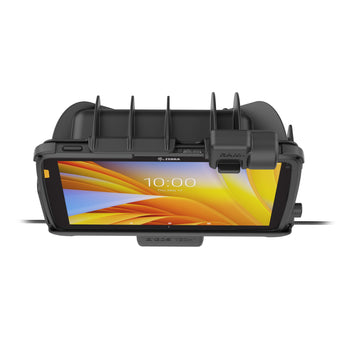

- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty

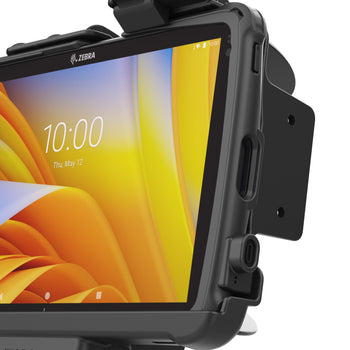

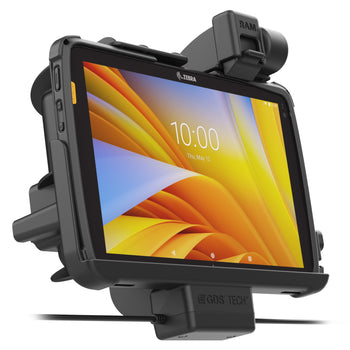

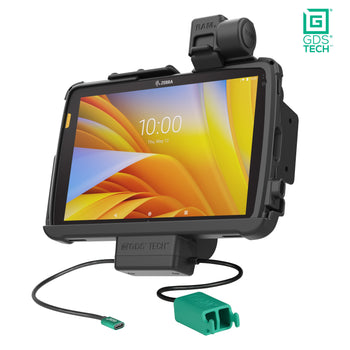

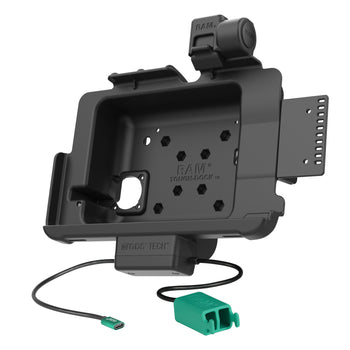

For frequent docking and undocking of the Zebra ET40 & ET45 10" tablets wrapped in an IntelliSkin® protective sleeve, this form-fit GDS® vehicle dock (RAM-GDS-DOCKNLL-ZE21PD2U) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a USB Type-C connector and allows you to keep the device charged through the pogo pin contacts when the IntelliSkin®-wrapped ET4x 10" is docked. A dual USB Type-A pigtail connector is provided for adding two additional input devices. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the GDS® Ecosystem™ and the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device. Always Protected. Always Connected.®
hardware included
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties

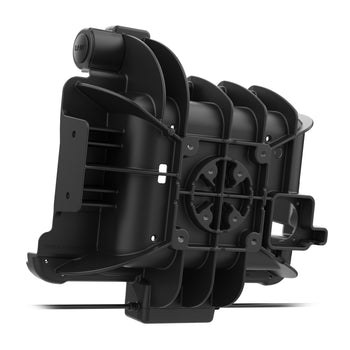

hole pattern
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
output voltage
5V - 20V @ 3A
power output
60W
input connector
USB Type-C
input cable length
215mm
output connector
(2) USB 2.0 Type A
output cable length
215mm
transfer speed
12Mbps
certifications
RoHS
WEEE
FCC
CE
ICES
UKCA
Warranty
3 year warranty
Weight
0.77 kg
