GDS® Uni-Conn™ Locking Tilt & Swivel Dock with USB-C + Data
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
.
Swipe to see more images.
Features

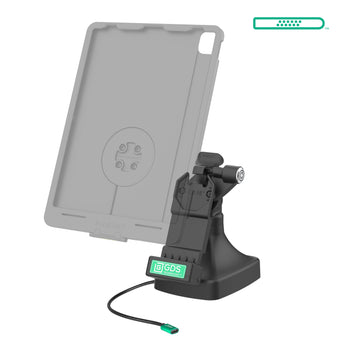

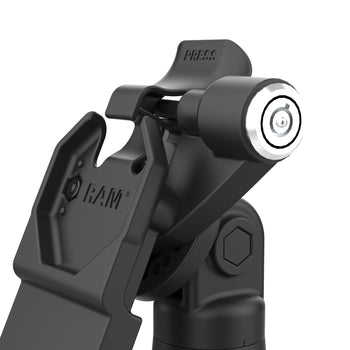

- Key-locking powered Kiosk dock for devices enclosed in an IntelliSkin® with D-shaped bottom connection and GDS® Uni-Conn™ Adapter

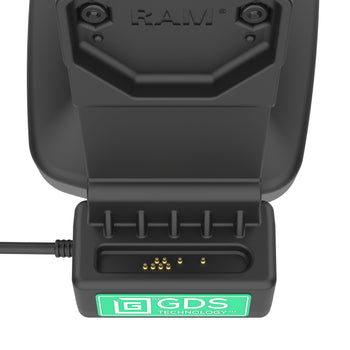

- GDS® Uni-Conn™ dock pogo pins provide charging via USB-C

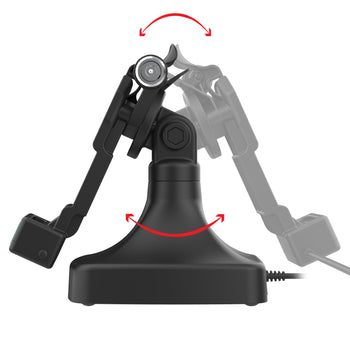

- Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
- Weighted base with rubber pads prevents kiosk from moving
- Backed by a 3-year warranty

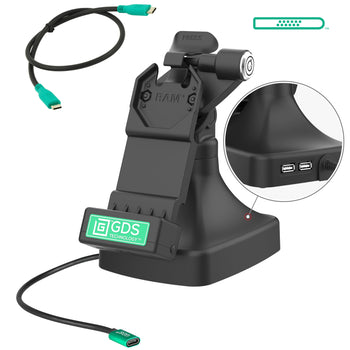

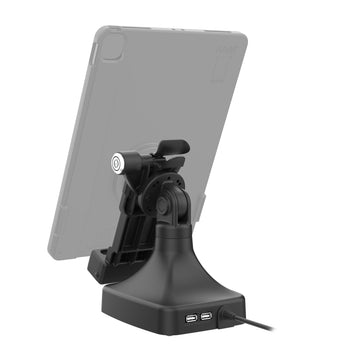

The GDS® Uni-Conn™ Locking Tilt & Swivel Dock with USB-C + Data (RAM-GDS-DOCKLR-D14-U1C-2A) is a free-standing, powered dock for devices enclosed in an IntelliSkin® Next Gen, IntelliSkin® Hard Case, or standard IntelliSkin® Thin-Case™ with a GDS® Uni-Conn™ adapter. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ dock via USB-C connection while the two USB-A ports on the back support up to two input devices like keyboard, mouse, scanner gun, and more. This dock features a weighted base and rubber pads that provide theft deterrence and prevent it from sliding around on surfaces. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. One Dock to Connect Them All™ Always Protected. Always Connected.®
hardware included
(1) 1 Meter USB-C 2.0 Male to Male Cable

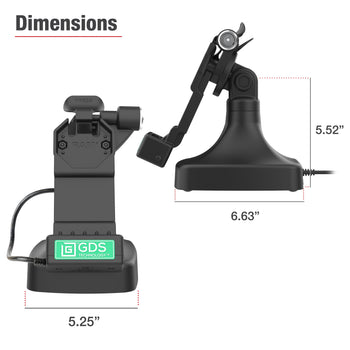

product dimensions
Height from Base to Tilt Bolt: 5.52"
Base Width: 5.13"
Base Depth: 6.63"
materials
High Strength Composite
packaging type
Box
output voltage
USB-C Tablets: 5V - 20V @ 3A Max
mUSB Tablets: 9V @ 1.67A Max
power output
60W Max
input connector
USB Type-C Female
input cable length
1.5 Meters
ports
(2) USB-A
Warranty
3 year warranty
Weight
3.027 kg
