GDS® Uni-Conn™ 7" Locking Pedestal Dock with PoE - Gray
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
.
Swipe to see more images.
Features

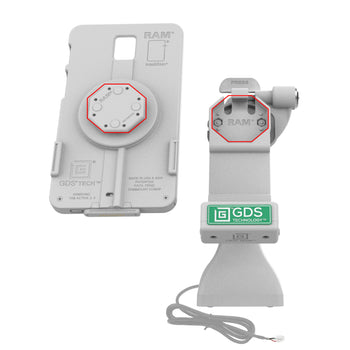

- Light gray, key-locking 7" pedestal dock for devices enclosed in an IntelliSkin® with D-shaped bottom connection and GDS® Uni-Conn™ Adapter
- GDS® Uni-Conn™ dock pogo pins provide charging via PoE

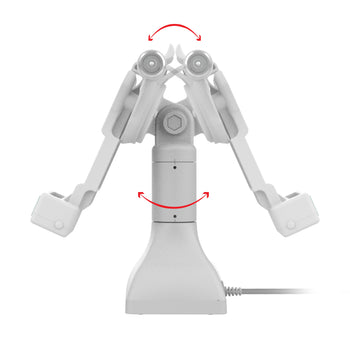

- Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
- Install dock to any surface with drill-down base
- Backed by a 3-year warranty

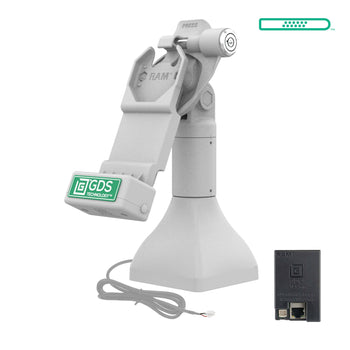

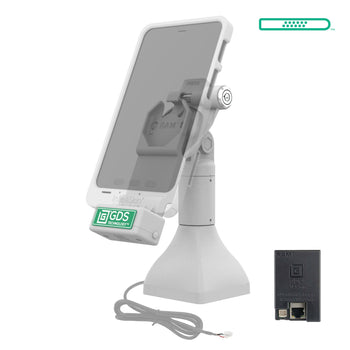

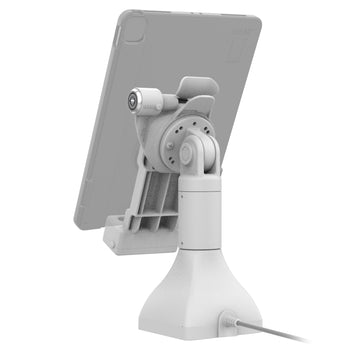

The GDS® Uni-Conn™ 7" Locking Pedestal Dock with PoE - Gray (RAM-GDS-DOCKLR-D11-7-U1E-GRY) is a free-standing, 7" pedestal dock for devices enclosed in an IntelliSkin® Next Gen, IntelliSkin® Hard Case, or standard IntelliSkin® Thin-Case™ with a GDS® Uni-Conn™ adapter. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ dock via Power over Ethernet (PoE) connection. This dock features a drill-down attachment style, providing a stable base for the tall dock. The light gray aesthetic is ideal for sophisticated, bright workplaces. One Dock to Connect Them All™ Always Protected. Always Connected.®
Components
hardware included

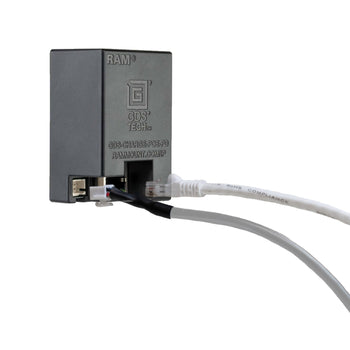

(1) RAM® PoE to PD Charging Module

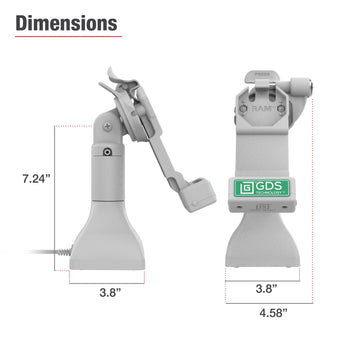

product dimensions
Height from Base to Tilt Bolt: 7.24"
Base Width: 3.8"
Base Depth: 3.8"
materials
Powder coated steel
High Strength Composite
packaging type
Box
output voltage
USB PD 3.0:
5V @ 3A
9V @ 2.2A
12V @ 1.7A
power output
24W Max
input connector
JST Male Connector
input cable length
1.5 Meters
Warranty
3 year warranty
Weight
0.959 kg
