GDS® Uni-Conn™ Powered 14" Locking Pedestal Dock with PoE
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 1 to 7 week timeframe. Please contact our sales team for more accurate delivery information.
.
Swipe to see more images.
Features
- Key-locking 14" pedestal dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads
- GDS® connector and pogo pins provide charging via Power over Ethernet (PoE); Mechanical attachment mechanism allows for quick docking and undocking

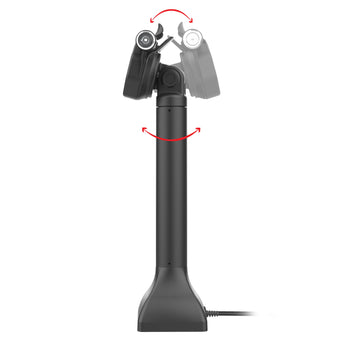

- Dock swivels 180 degrees and enables connected devices to tilt 180 degress
- Install dock to any surface with drill-down base
- Backed by a 3-year warranty

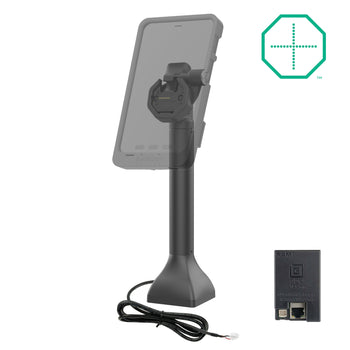

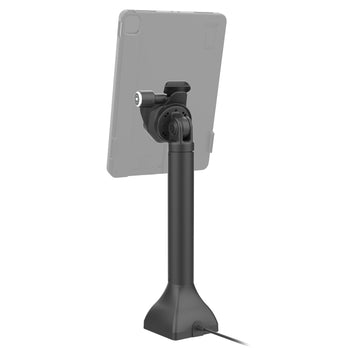

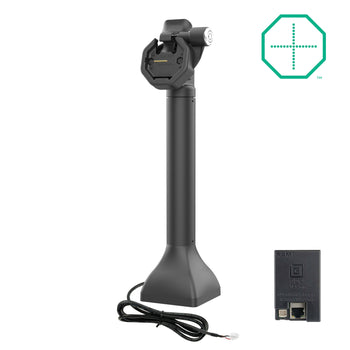

The GDS® Uni-Conn™ Powered 14" Locking Pedestal Dock with PoE (RAM-GDS-DOCKLR-D11-14-U3E) is a free-standing, 14" pedestal dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. Easily dock and undock your device with the assistance of the mechanical attachment mechanism. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via Power over Ethernet (PoE) connection. This dock features a drill-down attachment style, providing a stable base for the tall dock. One Dock to Connect Them All™ Always Protected. Always Connected.®
Components
hardware included

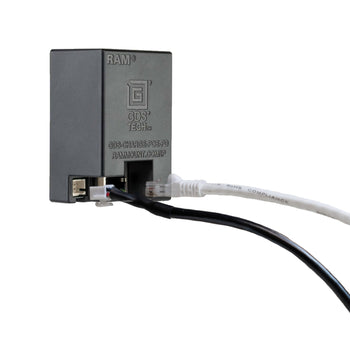

(1) RAM® PoE to PD Charging Module
materials
Powder coated steel
High Strength Composite
packaging type
Box
output voltage
USB PD 3.0:
5V @ 3A
9V @ 2.2A
12V @ 1.7A
power output
24W Max
input connector
JST Male Connector
input cable length
1.5 Meters
transfer speed
10/100Mbps
Warranty
3 year warranty
Weight
1.366 kg
