Locking GDS® Cool-Dock™ with USB-C 3.1 for iPad 10, Air 5 & Pro 11"
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Compatible with any Power Delivery chargers including GDS® Charge™ accessories (PD required)
- Designed specifically for the Apple iPad Air (4th & 5th Gen), iPad Pro 11" (1st - 4th Gen) & iPad 10th Gen in an IntelliSkin® Next Gen protective sleeve

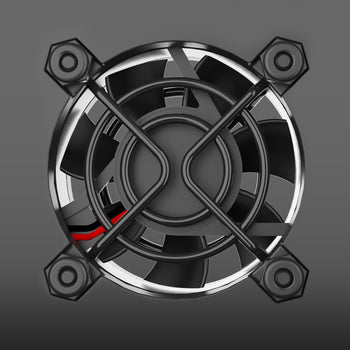

- Includes built-in 12-VDC Axial cooling fan with 2.2m long hardwire power cable and SAE quick disconnect for hardwire installation
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty

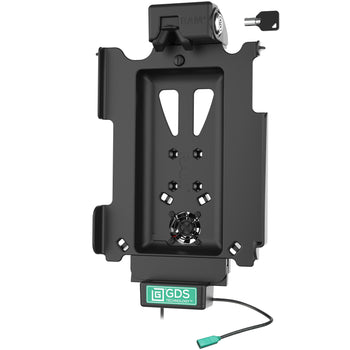

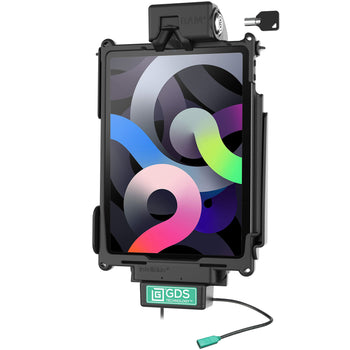

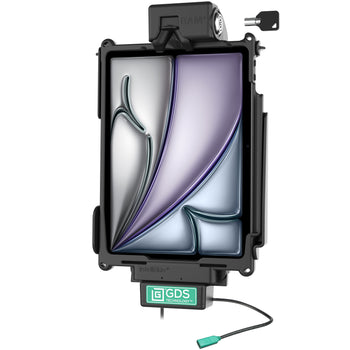

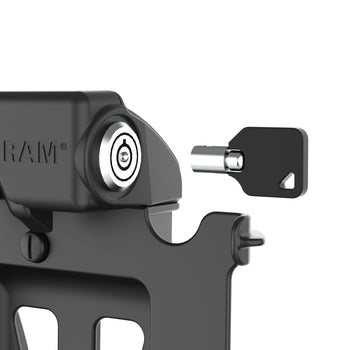

The GDS® Cool-Dock™ is the upgraded version of the GDS® Tough-Dock™ including a built-in 12-VDC Axial cooling fan with a 2.2 meter long hardwire power cord and a keyed locking system. The GDS® Cool-Dock™ is the turnkey vehicle dock in the GDS® Tech™ line of vehicle docks designed to support the Apple iPad Air (4th & 5th Gen) & iPad Pro 11" (1st - 4th Gen) in an IntelliSkin® Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS® Cool-Dock™ supports data syncing and charging capabilities for the Apple iPad Air (4th & 5th Gen) & iPad Pro 11" (1st - 4th Gen). The GDS® Cool-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Cool-Dock™ is backed by a 3-year warranty. This dock will keep your iPad charged with any Power Delivery charging source (see Expand Your RAM® below). Always Protected. Always Connected.®
Components
hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys
hole pattern

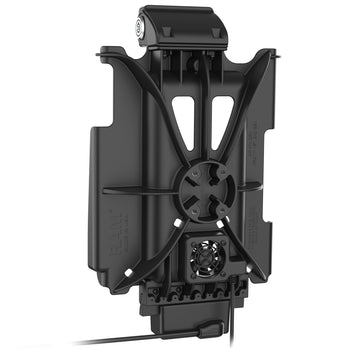

4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
output voltage
5V - 20V @ 3A
power output
60W
input connector
USB Type-C
transfer speed
5Gbps
Warranty
3 year warranty
Weight
0.74 kg
Additional Information
To achieve peripheral support, use RAM-GDS-CHARGE-V3FCAU or RAM-GDS-CHARGE-V3FCA2U as your charging source. USB Cable RAM-GDS-CAB-USBC-CMCM-20-10 will be required.
