GDS® Locking Vehicle Phone Dock with USB Type-C 3.1 for IntelliSkin®
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features

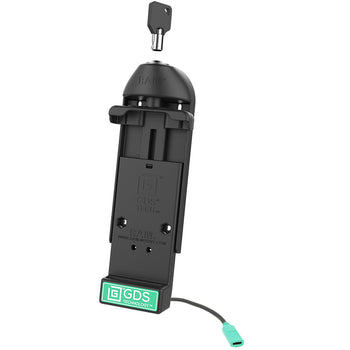

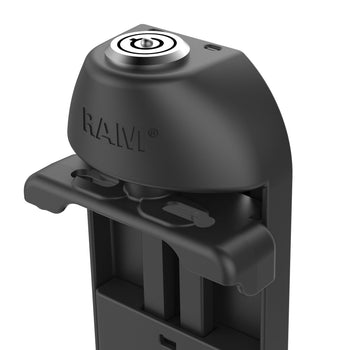

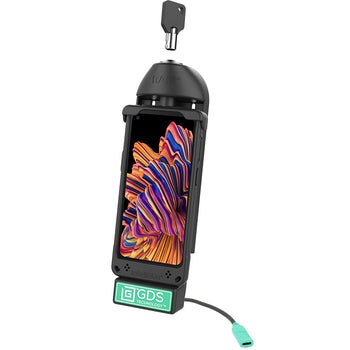

- Spring-loaded key locking vehicle dock featuring GDS® Technology™ for data and fast charging capabilities for phones wrapped in IntelliSkin®; uses USB Type-C to connect to power

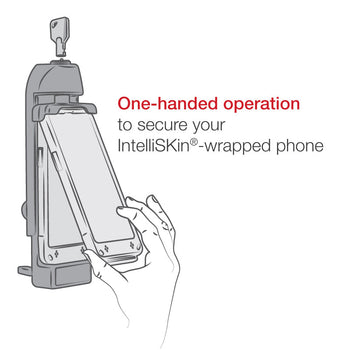

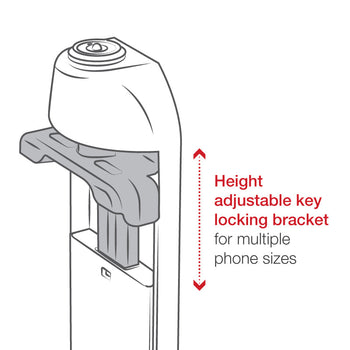

- Adjustable top cup accommodates any size phone wrapped in IntelliSkin®
- Compatible with B and C size RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty
The GDS® Locking Vehicle Phone Dock with USB Type-C for IntelliSkin® is the new key locking phone dock designed to fit all compatible phones wrapped with IntelliSkin®. With a one-handed operation and key locking top cup, this new phone dock makes it easier than ever to secure your IntelliSKin®-wrapped phone in a variety of environments and mounting configurations. Featuring a 15" long USB Type-C cable, this dock supports quick-charging. Always Protected. Always Connected.®
hardware included
Assembly Hardware
(2) Keys
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
output voltage
5V @ 2A
5V @ 3A
12V @ 1.5A
12V @ 3A
Charging up to 4A
input connector
USB Type-C
Warranty
3 year warranty
Weight
0.36 kg
