GDS® Vehicle Dock for the Samsung Tab A 8.0 (2018) SM-T387
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Spring-loaded locking vehicle dock featuring GDS® Technology™ for data and charging capabilities
- Specifically designed for the Samsung Galaxy Tab A 8.0 (2018) SM-T387 with IntelliSkin®
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty

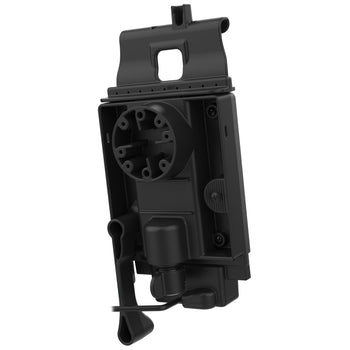

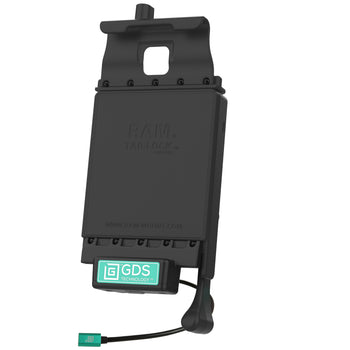

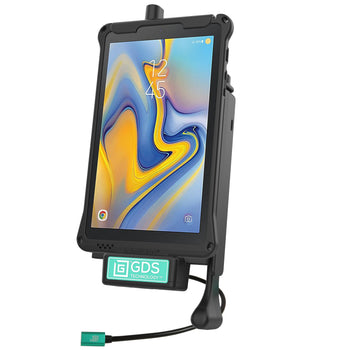

The RAM® Locking Vehicle Dock with GDS® is a spring-loaded, quick-release cradle with a keyed lock that offers a secure fit with easy access to the mounted tablet. This docking station is compatible with the Samsung Galaxy Tab A 8.0 (2018) SM-T387 with IntelliSkin®. The integrated GDS® platform enables data sync and charging capabilities. Without the need to remove the IntelliSkin® sleeve from the device, users can quickly and efficiently mount the tablet in the vehicle dock while keeping the device charged and locked in place. This dock is designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Always Protected. Always Connected.®
Components
hardware included
Assembly Hardware
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) #8 x 5/8" Sheet Metal Screws
(1) Cable Clamp
(2) Keys
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
output voltage
5V - 12V @ 3A
power output
15W
input connector
USB Type-C
Warranty
3 year warranty
Weight
0.84 kg
