GDS® Locking Powered Dock + USB-A for Zebra EC50/55
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Spring-loaded powered dock featuring GDS® Technology™ is designed to accommodate IntelliSkin®-wrapped handheld devices including the Zebra EC5x series
- Charging capabilities provided by a USB Type-C connector, supports a single peripheral via USB Type-A pigtail connector
- Compatible with RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty

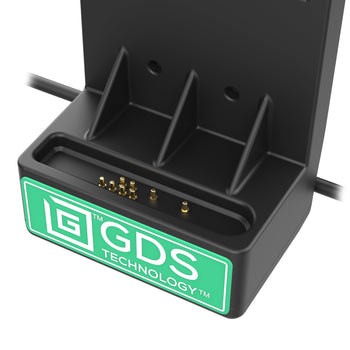

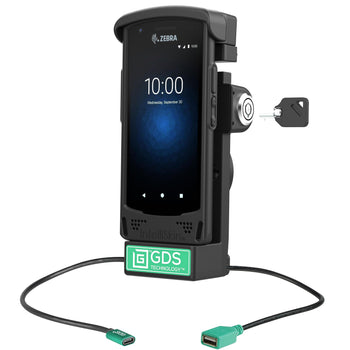

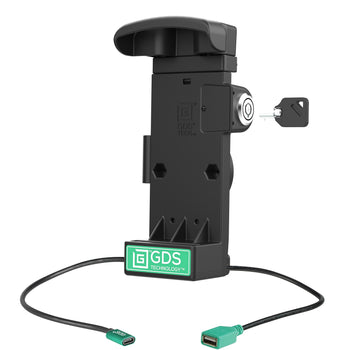

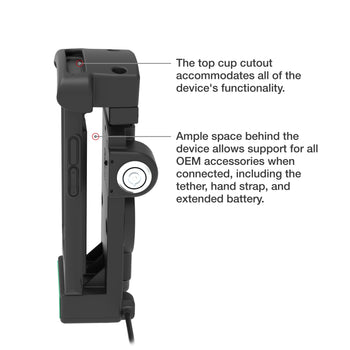

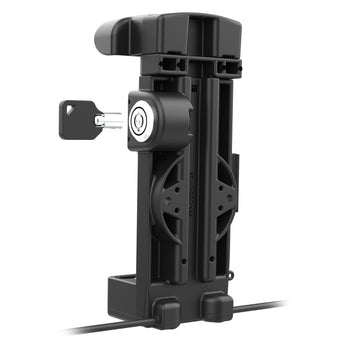

The GDS® Vehicle USB-C Dock for Zebra EC50/EC55 in IntelliSkin®, Locking, Power + Data (RAM-GDS-DOCKL-V12-ZE16CPDU) is designed to fit the IntelliSkin®-wrapped Zebra EC5x. The dock's one-handed operation makes it easier than ever to secure your device in a variety of environments and mounting configurations. An integrated cutout on the top allows for the ability to access buttons, ports, and scanner without removing the device from the dock. Charging capabilities are provided by a USB Type-C connector and built-in pogo pin docking contacts for a seamless charging experience. A single USB Type-A pigtail connector is provided for adding one additional peripheral. Includes key-lock for additional theft deterrance. Always Protected. Always Connected.®
Components
hardware included
(2) Keys
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
input connector
USB Type-C
USB Type A for 1 Peripheral
input cable length
1 Meter
Warranty
3 year warranty
Weight
0.38 kg
