GDS® Uni-Conn™ Locking Spring Loaded Power + USB-A Dock - Heated Pins

Part#: RAM-GDS-DOCKL-V12-U1CPDHU
UPC:793442020346Patented & Pats. Pend.

£211.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.

.

Swipe to see more images.

Features

  • Spring-loaded, locking dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral

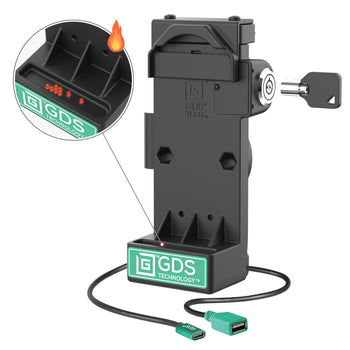

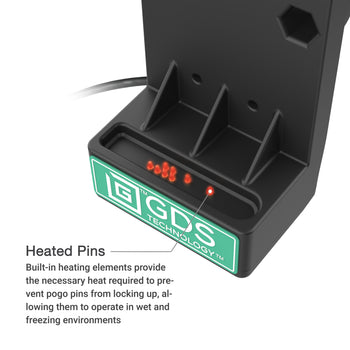

  • Heated pogo pins combat ice and ensure a secure connection in harsh, cold environments
  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
  • Power delivered via USB-C connector; connect a single input device via USB-A connector
  • Backed by a 3-year warranty

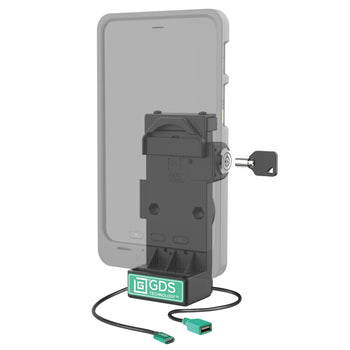

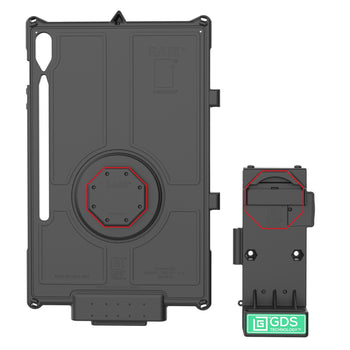

The GDS® Uni-Conn™ Locking Spring Loaded Power + USB-A Dock - Heated Pins (RAM-GDS-DOCKL-V12-U1CPDHU) is a revolutionary universal docking platform. This sliding dock solution securely holds your device in place and features a key lock for additional theft deterrence. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. It has an easy docking and undocking process, simply place the GDS® Uni-Conn™ adapter on the back of your device into the octagon-shaped connection point on the top cup, pushing the the device upwards until you can place the bottom of the device on the D-shaped bottom cup connection point. Integrate up to one peripheral device into your solution with the USB-A female connector. Combat harsh, freezing environments with heated pogo pins integrated into the dock to ensure a secure connection and prevent the pins from locking up due to ice. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.

hardware included

(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

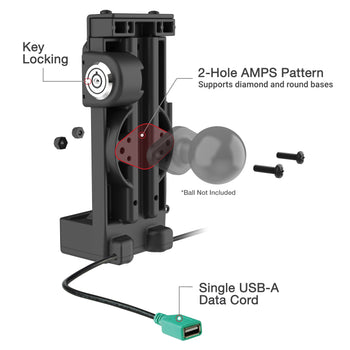

hole pattern

2-Hole AMPS: 1.912"

materials

High strength composite

packaging type

Poly Bag

input connector

USB Type-C
USB Type A for 1 Peripheral

input cable length

1 Meter

peripheral output

500mAh

Warranty

3 year warranty

Weight

0.362 kg

Additional Information

GDS® Uni-Conn™ Spring-Loaded docks are not recommended for high vibration or open cockpit applications, such as forklifts or semi-trucks. Consider the GDS® Uni-Conn™ Powered Dock for high vibration applications or the GDS® Tough-Dock™ for extreme applications.
