GDS® USB Type-C 2.0 Vehicle Dock for Samsung Tab A 8.4 & 8.0 (2019)
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.

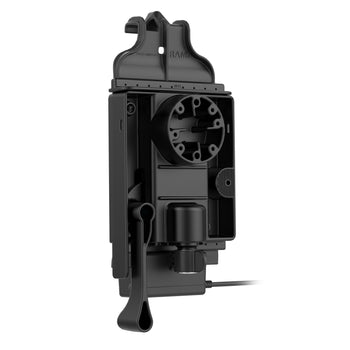

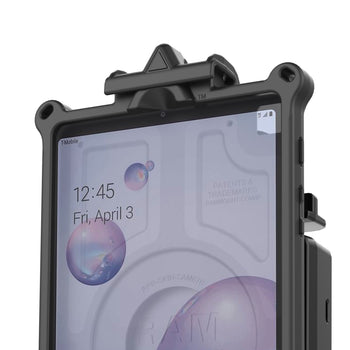

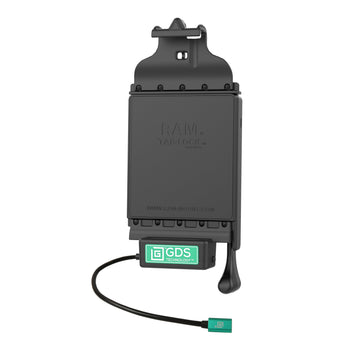

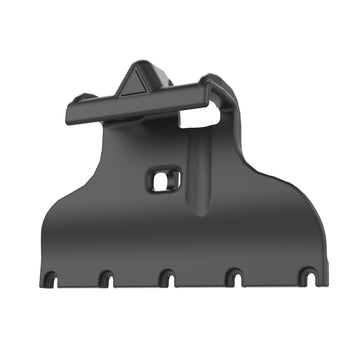

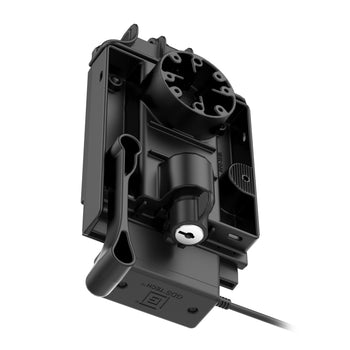

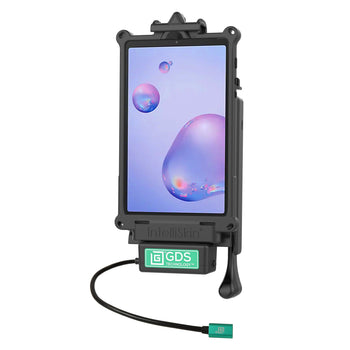

Swipe to see more images.
Features
- Vehicle dock designed specifically for the Samsung Galaxy Tab A 8.4 (2020) and Tab A 8.0 (2019) wrapped in IntelliSkin® Next Gen protective sleeves to accommodate 3.5mm headphone jack
- Type-C port provides high speed charging to the device
- Keyed lock for theft deterrence
- Easy, quick release of your tablet for on-the-go applications
- Backed by a 3-year warranty
This USB Type-C locking vehicle dock for IntelliSkin® Next Generation features GDS® Technology™ to enable high speed charging capabilities on the go. This spring-loaded, quick release dock is designed specifically to fit the Samsung Galaxy Tab A 8.4 (2020) or the Tab A 8.0 (2019) in an IntelliSkin® Next Gen-protective sleeve, and features a keyed lock that offers a secure fit with easy access to your mounted tablet. A bottom dock cup includes GDS® pogo pins and a USB Type-C pigtail. Without the need to remove your IntelliSkin® Next Gen sleeve from the device, efficiently mount the tablet in the vehicle dock to keep your tablet charged and locked in place. The top cup of this system is specifically designed to allow access of the 3.5mm headphone jack of the tablet while in the dock. This dock is designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Always Protected. Always Connected.®
Components
hardware included
Assembly Hardware
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) #8 x 5/8" Sheet Metal Screws
(1) Cable Clamp
(2) Keys
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
output voltage
5V - 12V @ 3A
power output
15W
input connector
USB Type-C
Warranty
3 year warranty
Weight
0.68 kg
