GDS® Dock + Single USB-A for iPad mini 6 with IntelliSkin®
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Vehicle dock with integrated GDS® Technology™ for Apple iPad mini 6 and other shorter tablets offers a universal charging platform for any device wrapped in IntelliSkin® Next Gen
- Type-C port provides high speed charging to the device with new short top cup power and single USB
- Keyed lock for theft deterrence
- Easy, quick release of your tablet for on-the-go applications
- Backed by a 3-year warranty

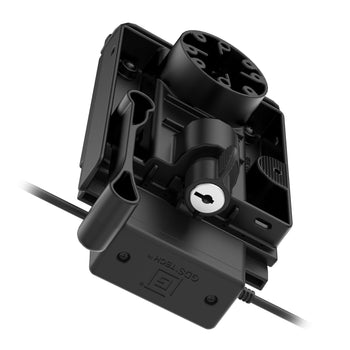

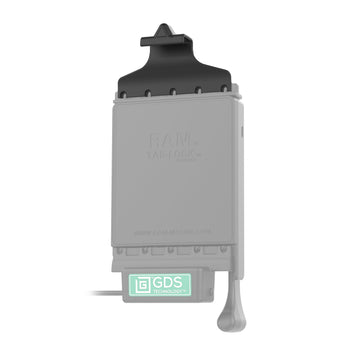

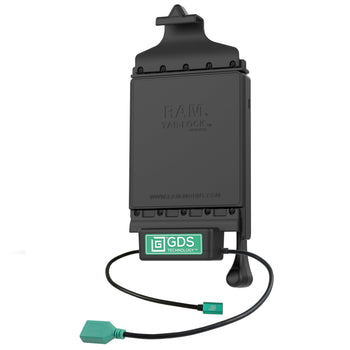

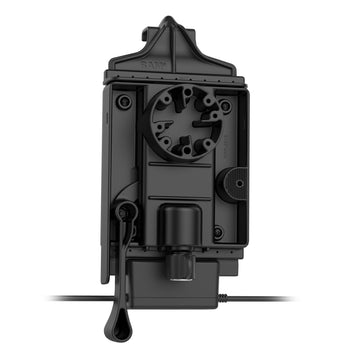

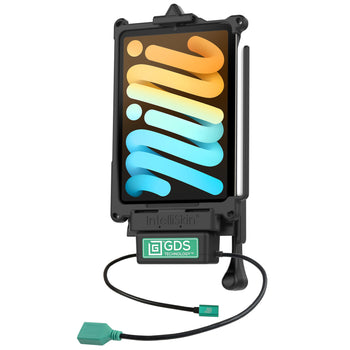

The single USB Type-C locking vehicle dock for IntelliSkin® Next Generation features GDS® Technology™ for Apple iPad mini 6 and other small tablets to enable high speed charging capabilities on the go. This spring-loaded, quick release dock features a keyed lock that offers a secure fit with easy access to your mounted tablet. A bottom dock cup includes 8 pogo pins and a USB Type-C pigtail. Without the need to remove your IntelliSkin® Next Gen sleeve from the device, efficiently mount the tablet in the vehicle dock to keep your tablet charged and locked in place. This dock is designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Always Protected. Always Connected.®
Components
hardware included
Assembly Hardware
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) #8 x 5/8" Sheet Metal Screws
(1) Cable Clamp
(2) Keys
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
output voltage
Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max
Peripheral: 5V @ 900mA max
power output
15W
input connector
USB Type-C

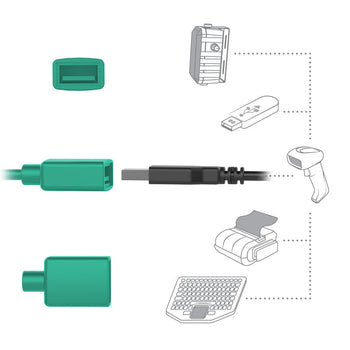

USB Type A for 1 Peripheral
output cable length
.21 Meters
Warranty
3 year warranty
Weight
0.75 kg
