GDS® Powered Dock for Zebra ET4x 10" Tablet with IntelliSkin®
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Powered dock featuring GDS® Technology™ and RAM® EZ-Roll'r™ provides charging capabilities for the Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin® Next Generation protective sleeve via USB Type-C for power; MIL-STD 810G Shock and Vibration tested
- When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
- Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty

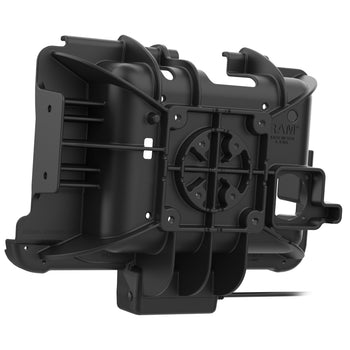

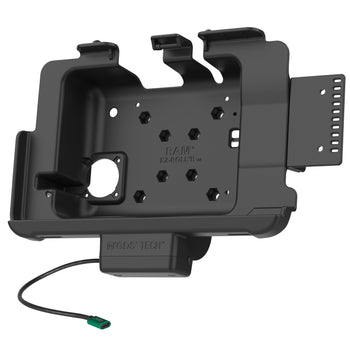

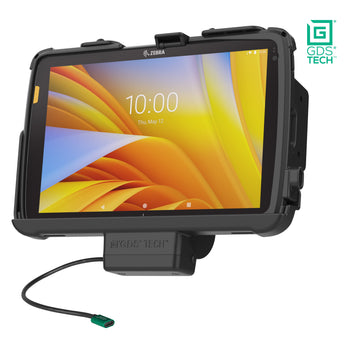

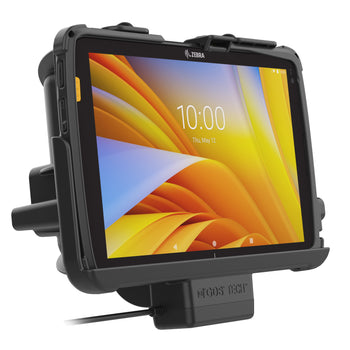

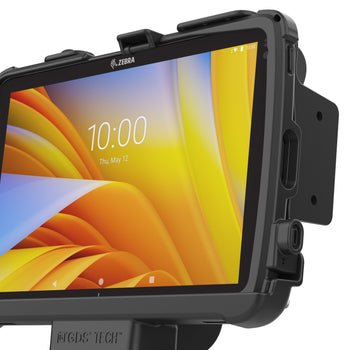

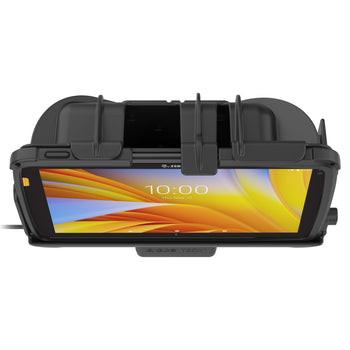

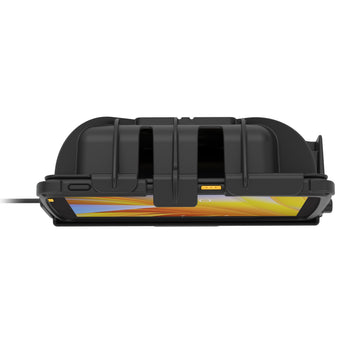

Featuring GDS® Technology™ for charging capabilities, the GDS® Vehicle Dock for Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin® Next Generation protective sleeve allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's USB Type-C connector. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device. Always Protected. Always Connected.®
hardware included
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties
hole pattern
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
output voltage
5V - 20V @ 3A
power output
60W
input connector
USB Type-C
input cable length
215mm
certifications
RoHS
WEEE
CE
UKCA
Warranty
3 year warranty
Weight
0.66 kg
