GDS® Vehicle Phone Dock with USB Type-C 2.0 for IntelliSkin® Products

Part#: RAM-GDS-DOCK-V1CPU
UPC:793442925474Patented & Pats. Pend.

£72.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Swipe to see more images.

Features

  • Spring-loaded vehicle dock featuring GDS® Technology™ for data and fast charging capabilities for phones wrapped in IntelliSkin®; uses USB Type-C to connect to power
  • Adjustable top cup accommodates any size phone wrapped in IntelliSkin®
  • Compatible with B and C size RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty

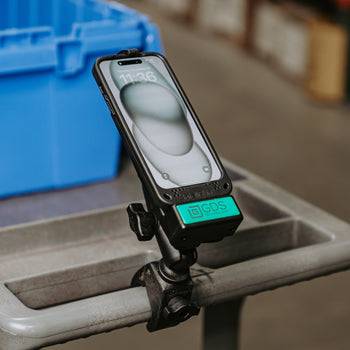

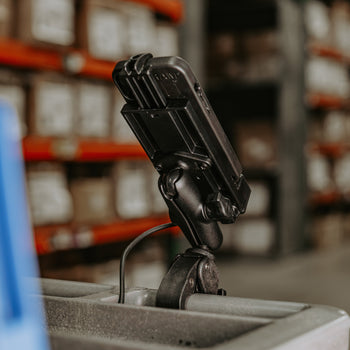

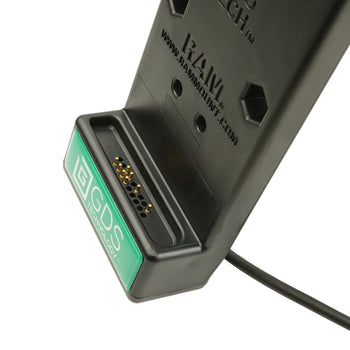

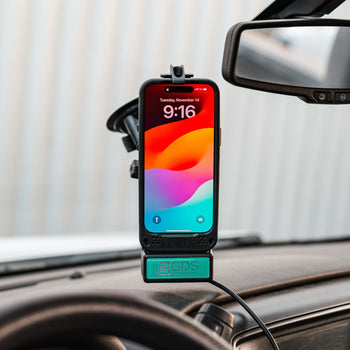

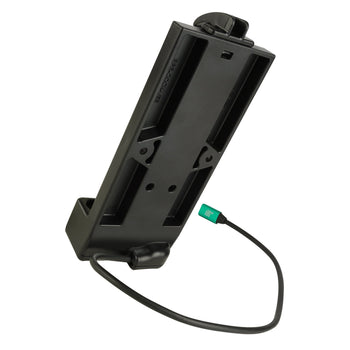

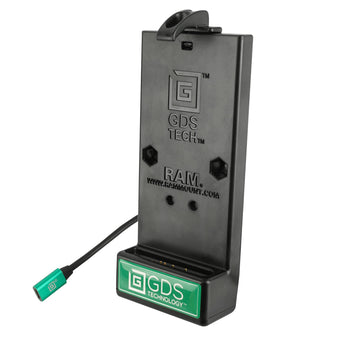

The RAM® Universal Vehicle Phone Dock with GDS® Technology™ is a spring-loaded, quick release holder that offers a secure fit with easy access to the mounted phone. This docking station is compatible with any phone wrapped in an IntelliSkin®. This dock is engineered to support USB Type-C devices and has a USB Type-C port to connect to a power source. The integrated GDS® Technology™ platform enables charging of the mounted device and safely secures the phone in a variety of applications. Without the need to remove the IntelliSkin® from the device, the user can quickly and efficiently mount the device in the vehicle dock and keep the device charged. Always Protected. Always Connected.®

Components

hardware included

(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts

hole pattern

2-Hole AMPS: 1.912"

materials

High strength composite

packaging type

Poly Bag

output voltage

Type-C Devices: 5V - 12V @ 3A max
mUSB Devices: 5V @ 1.5A max

power output

15W

input connector

USB Type-C

Warranty

3 year warranty

Weight

0.189 kg
